Bryant 9901 Decorator Toggle Switch 20 Amp

Product Description

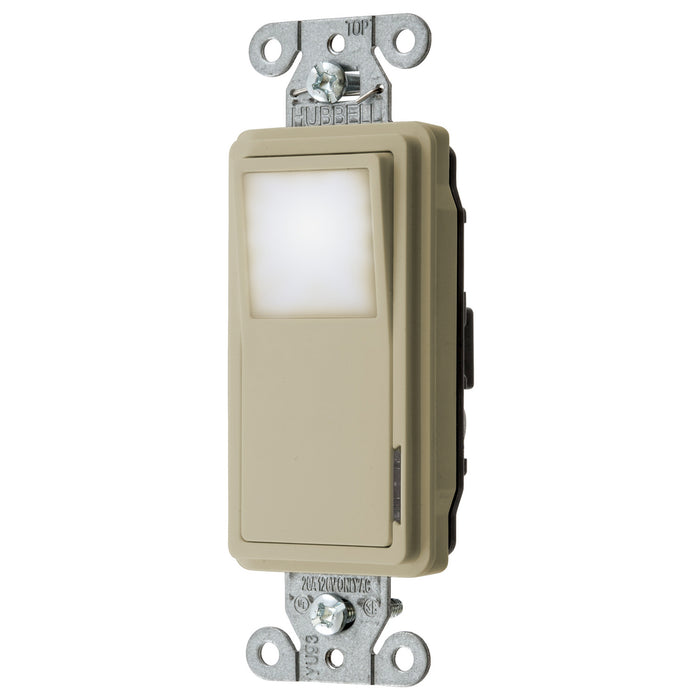

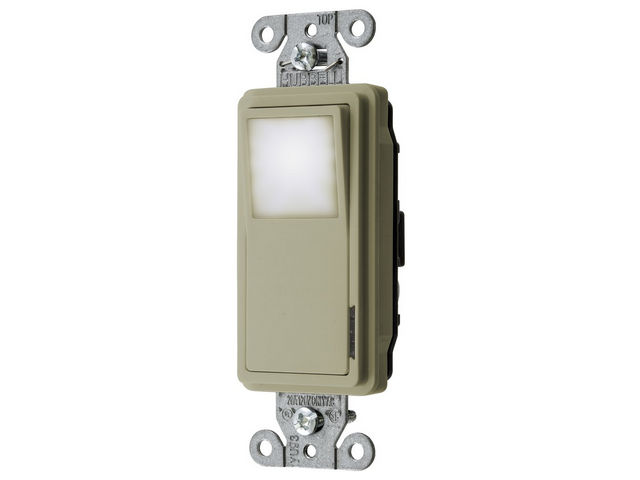

The BRYANT 9901 is an industrial-grade decorator toggle switch, single pole, back and side wired, 20 amp 120/277 volt AC, and self-grounding. Designed for controlling resistive, inductive, tungsten-filament, fluorescent and motor loads for AC branch lighting and appliance circuits as permitted by the NEC.

• High-impact and chemical resistant nylon toggle
• Corrosion-resistant brass and nickel-plated yoke
• Dual-grounding options, Grounding Terminal or stainless steel self-grounding clip

Product Highlights

The BRYANT 9901 toggle switch is ideal for residential and commercial applications. It features back wiring with clamp-type terminals that accept up to #10 wire.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9901
• Country of Origin: United States

Technical Specifications

• Operation Mode: ON-OFF
• Current Rating: 20 Amps
• Operating Voltage: 277 Volts
• Contact Type: Normally Open
• Connector Type: Screw
• Switch Type: Toggle
• Circuit Type: 1-way
• Mounting Type: Wall Mount
• Number of Positions: 1
• Upper Temperature Rating: 75 Degrees Celsius
• Item dimensions L x W x H: 4.19 x 1.25 x 1.13 inches
• Model: 9901
• Maximum Amperage: 20 A
• MPN: CS1223I
• Switch Style: Toggle
• Suitable For: Interior
• Brand: Hubbell
• Operation Method: On/Off
• Current Type: AC
• Type: Power Toggle Switch
• Termination Type: Screw
• Contact Material: Nylon
• Features: Heavy Duty
• Country of Origin: United States
• Voltage: 120
