Bryant 9650NP Straight Blade Devices Male Plug 50A 250V 6-50P

Product Description

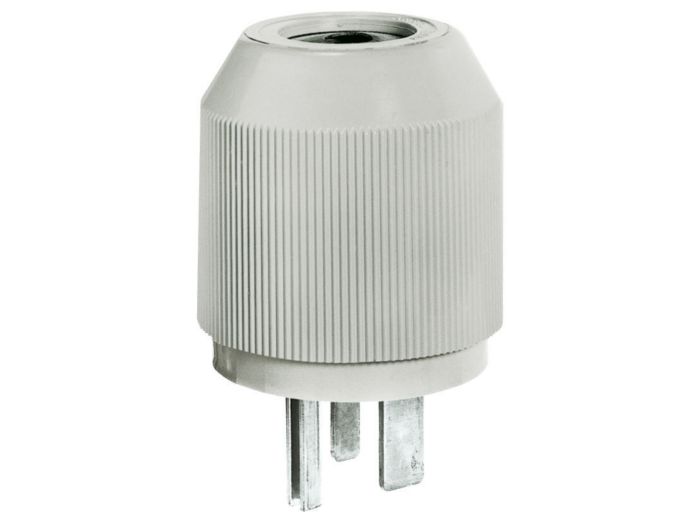

The BRYANT 9650NP is a heavy-duty, industrial/commercial grade straight blade male plug. Rated at 50A 250V, this 2-pole, 3-wire grounding plug features a 6-50P NEMA rating. Constructed from composite material, it is suitable for indoor dry environments unless protected by additional means. Commonly used in industrial and commercial settings for connecting heavy-duty equipment to power sources.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 50A 250V
• 2-Pole 3-Wire Grounding

Product Highlights

Heavy-duty, industrial/commercial grade straight blade male plug with 50A 250V rating and 6-50P NEMA configuration.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9650NP
• Country of Origin: MX, US

Technical Specifications

• Application: Heavy Duty
• Catalog Number: 9650NP
• Color: Gray
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786732261
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 12500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #6 AWG
• Nema Rating: 6-50P
• Cord Type: All Portable
• Brand: Bryant Electric
• Cord Diameter: 0.425 to 1.32 in
• Country of Origin: MX, US
• Grade: Commercial/Industrial
• Manufacturer Name: Hubbell
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Pressure Screw
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
