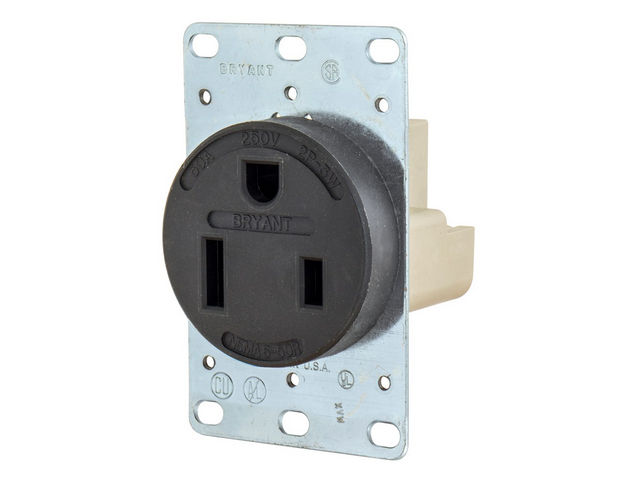

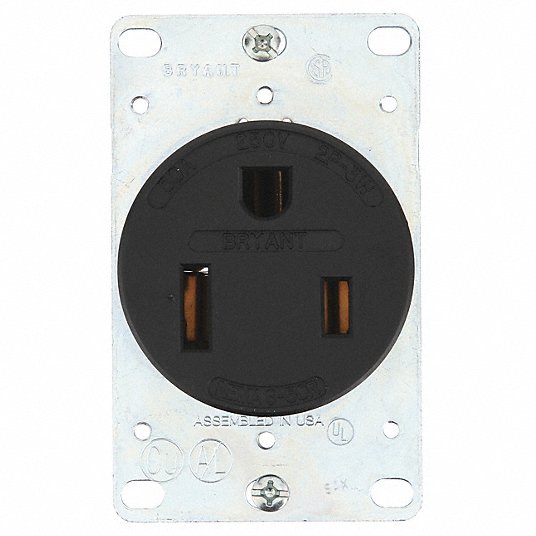

Bryant 9650FR Receptacle Flush Mount Single 50A 250V 6-50R

Product Description

The BRYANT 9650FR receptacle is designed for plug-in EV charging applications. This commercial/industrial grade, flush mount single receptacle ensures a safe and efficient charging experience for electric vehicles. With a 50A, 250V rating, it delivers high-power charging capabilities, enabling faster charging times for EVs.

• Tailored for EV Charging
• Industrial-Grade Construction
• Secure Connection

Product Highlights

The receptacle features a 2-pole, 3-wire grounding configuration, providing a secure electrical connection for EV charging. Designed for durability, withstanding heavy usage and frequent insertions and removals without compromising performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9650FR
• Country of Origin: USA

Technical Specifications

• Catalog Number: 9650FR
• Application: Industrial Grade
• Item Type: Single
• Material: Thermoplastic Polymer
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Heavy Duty
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Wattage: 12500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #10 AWG to #6 AWG
• Industry Standard(s): WR Rating
• Nema Rating: 6-50R
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No Cover
• Flange Type: Non-Flanged
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Material: Thermoplastic
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Industrial
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Voltage Rating Description: 250 V
• Voltage Rating AC: 250V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back
• Model: Bryant 9650Fr
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Depth: 2.400
• Length: 4.200
• Width: 2.400
