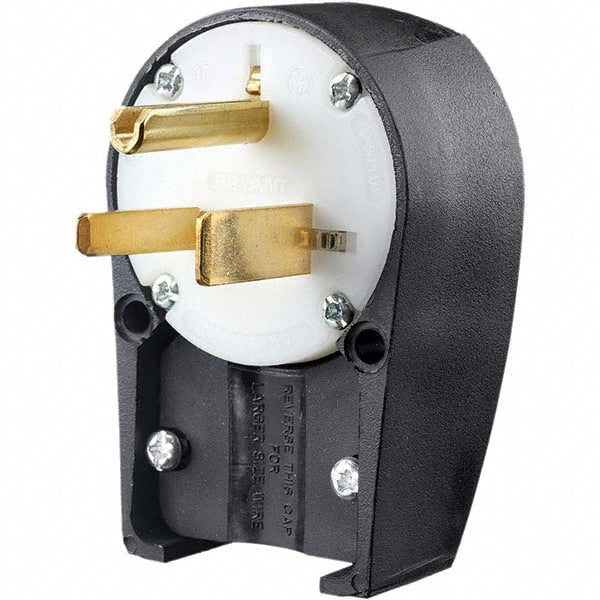

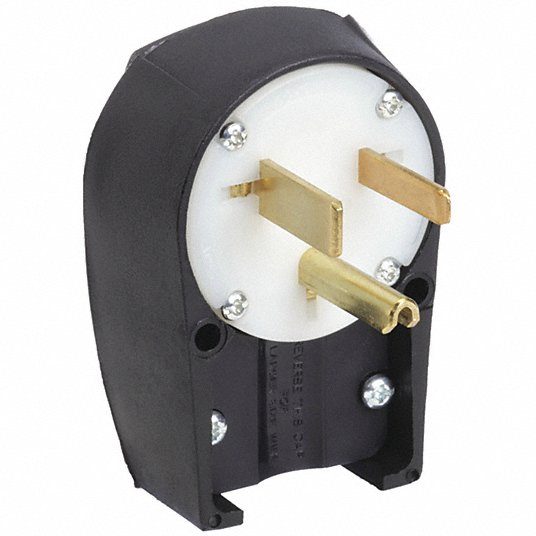

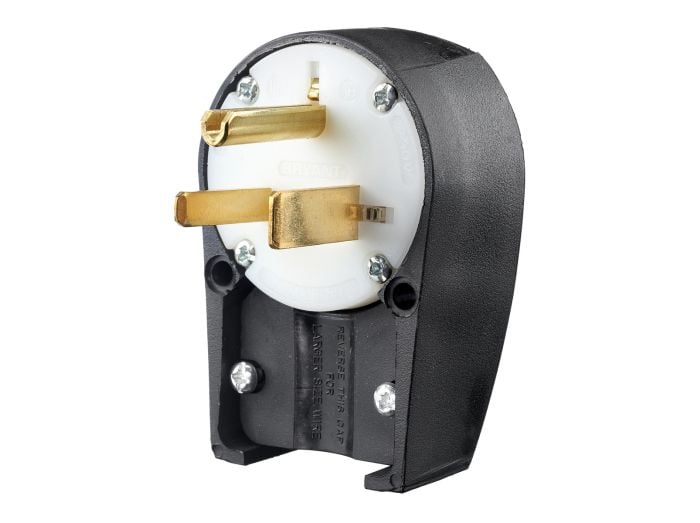

Bryant 9650ANPB Straight Blade Male Plug 50A 250V 6-50P

Product Description

The BRYANT 9650ANPB straight blade angled plug is engineered for EV charging applications and fully compatible with established EV charging standards. Crafted from industrial-grade nylon, this plug offers exceptional durability, safety, and high performance. Designed with an angled interface and ergonomic handle for easy operation in tight spaces.

• Rated for 50A and 250V for high-powered EV charging stations.
• Constructed from industrial-grade nylon for durability and long-lasting performance.
• Features an angled interface and ergonomic handle for easy insertion and removal.

Product Highlights

The BRYANT 9650ANPB angled plug is ideal for environments that demand reliability in EV power delivery, reducing electrical hazards and ensuring a secure connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9650ANPB
• Country of Origin: US

Technical Specifications

• Application: Heavy Duty
• Catalog Number: 9650ANPB
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Heavy Duty
• Type: Plug
• UPC: 781786677425
• Length: 4.13 in
• Width: 2.88 in
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 12500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #6 AWG
• Nema Rating: 6-50P
• Cord Type: All Portable
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Angled
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Brand: BRYANT
• MPN: 9650ANPB
• Features: Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 50 A, Grounding Grounded, Horsepower Rating 3 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration 6-50P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.38 in, For Minimum Cable Diameter 0.625 in, Grade Industrial
• Cable Length: N/A
• Depth: 3.400
• Blade Material: Brass
• Compatible Series: Hubbell Straight Blade
• For Environment: Dry
• For Location: Indoor
• Maximum Wire Size: 6 AWG
• Power Indicating Light: No
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Connector Type: Plug
• Grade: Industrial
• Connector Angle: Angled
• Amperage: 50 A
• Number Of Phases: 1
• Grounding Style: Self-Grounded
• Resistance Features: Impact-Resistant
• Body Material: Composite
• Nema Configuration: 6-50P
• UNSPSC Code: 39121400
• Product Service Code: 5935
• Description: PLUG ANG, 50A 250V, 6-50P
