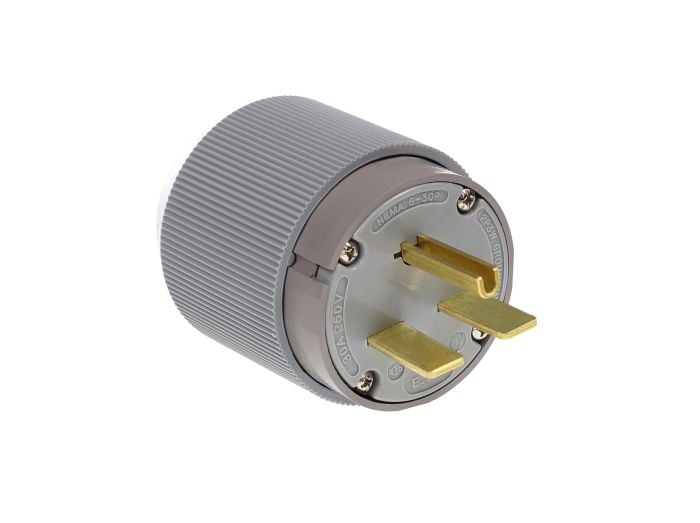

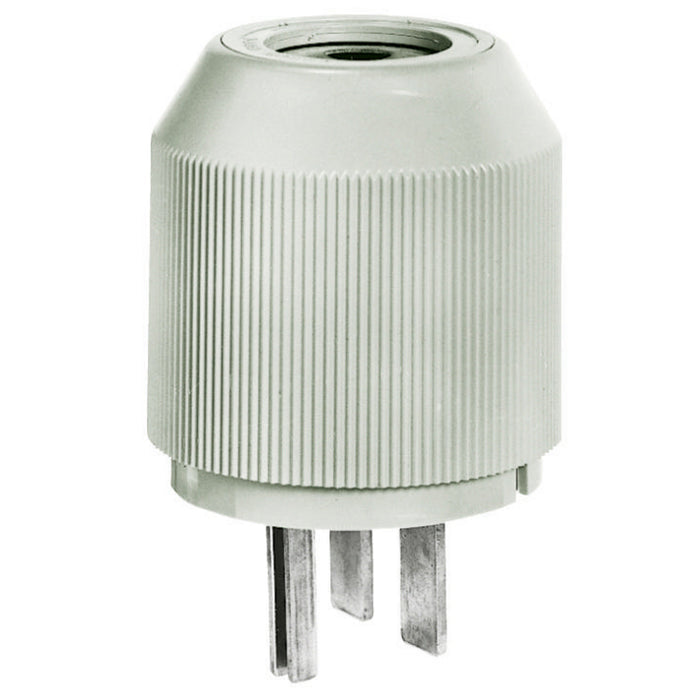

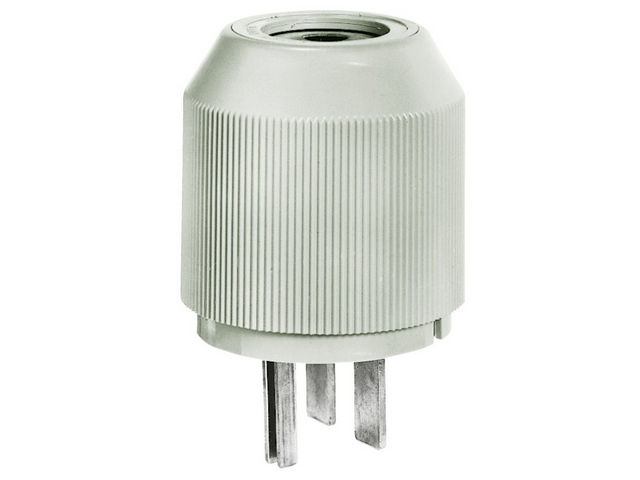

Bryant 9630NP Plug 30A 250V 6-30P

Product Description

The BRYANT 9630NP is a heavy-duty, industrial/commercial grade straight blade male plug. Rated at 30A 250V, this 2-pole, 3-wire grounding plug features a 6-30P NEMA configuration. Ideal for industrial and commercial applications requiring a reliable power connection.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 30A 250V
• 2-Pole 3-Wire Grounding

Product Highlights

Heavy-duty, industrial/commercial grade straight blade male plug with 30A 250V rating and 2-pole 3-wire grounding.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9630NP

Technical Specifications

• Catalog Number: 9630NP
• Application: Heavy Duty
• Color: Gray
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786732230
• Length: 3.81 in
• Width: 3.12 in
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 7500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #8 AWG
• Nema Rating: 6-30P
• Cord Type: All Portable
• Brand: Bryant
• MPN: 9630NP
• Manufacturer Part Number: 9630NP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Product Name: Bryant Plug 30A 250V 6-30P (9630NP)
• SKU: 9630NP
• Mfr. Part Number: 9630NP
• UPC Code: #781786732230
