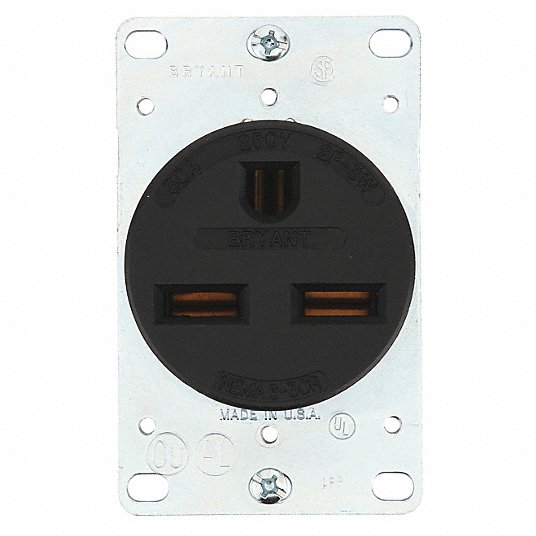

Bryant 9630FR Receptacle 30A 250V 6-30R

Product Description

The BRYANT 9630FR is a flush mount single receptacle designed for commercial and industrial use. Constructed with reinforced thermoplastic polyester, this receptacle supports 30A at 250V. It is designed for standard installations where electrical performance and durability are required.

• Buy America(n) Qualified
• Commercial/Industrial Grade
• Reinforced Thermoplastic Polyester

Product Highlights

The BRYANT 9630FR receptacle is ideal for providing reliable power connections in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9630FR
• Country of Origin: USA

Technical Specifications

• Application: Industrial Grade
• Catalog Number: 9630FR
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Smooth Face
• Type: Single Receptacle
• UPC: 781786677289
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 7500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #10 AWG to #6 AWG
• Industry Standard(s): WR Rating
• Nema Rating: 6-30R
• Standards - RoHS Compliance Status: CM
• Connection Orientation: Straight
• Cover Type: No Cover
• Face Plate Height: 3.7 in
• Face Plate Width: 2.3 in
• Flange Type: Non-Flanged
• For Location: Indoor
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black
• Housing Material: Thermoplastic
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 6 AWG
• Minimum Wire Size: 10 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 1
• Number of Wall Plates Included: 0
• Overall Depth: 2.3 in
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back
• AFCI: No
• Brand: BRYANT
