Bryant 9630anpb Straight Blade Plug 250V ac 30 A

Product Description

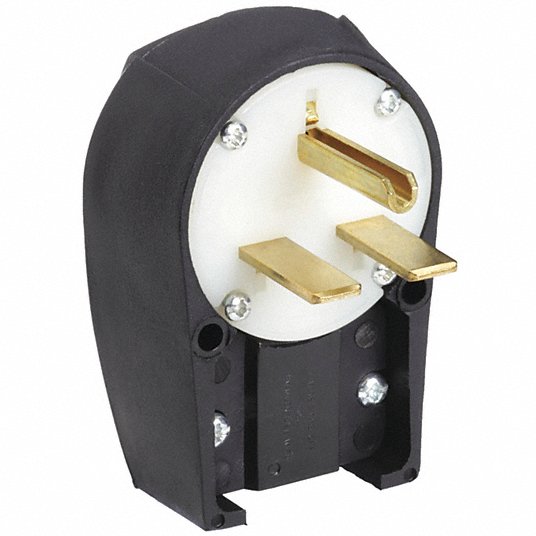

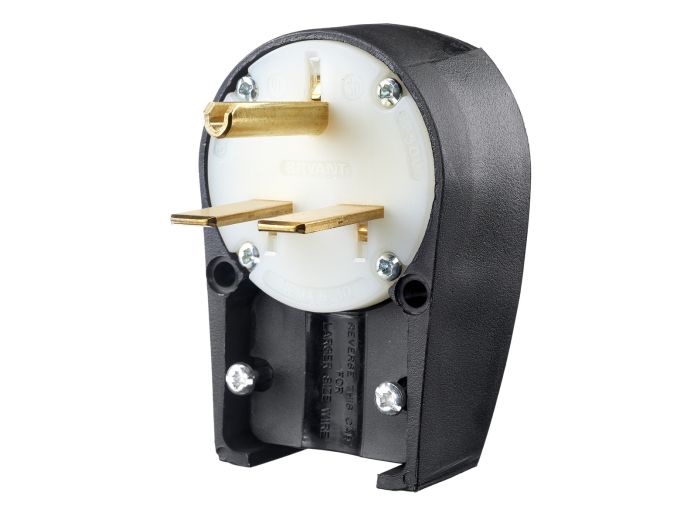

The BRYANT 9630ANPB is a straight blade plug with angled contact pins that position wires at 90 0 to where the plug inserts into the receptacle, saving space. This plug is rated at 250V AC and 30A. Its design helps prevent tripping or bumping into them and disconnecting equipment from power.

• Angled connection orientation
• Rated for 250V AC and 30A
• Chemical and impact resistant nylon housing

Product Highlights

The BRYANT 9630ANPB straight blade plug is ideal for use in confined spaces where a standard plug may be too bulky.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9630ANPB
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 9630ANPB
• Blade Material: Brass
• Compatible Series: Hubbell Straight Blade
• Connection Orientation: Angled
• Current Rating: 30 A
• For Maximum Cable Diameter: 1.38 in
• For Minimum Cable Diameter: 0.625 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black; White
• Housing Material: Nylon
• IP Rating: Not Rated
• Insulation Material: Nylon
• NEMA Plug Configuration: 6-30P
• Number of Blades: 3
• Number of Poles: 2
• Outside Diameter: 3.25 in
• Overall Length: 4.19 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Voltage Rating: 250V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Voltage: 250 VAC
• Number of Wires: 3
• Body Type: Angled
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Type: Electrical Plug
• Output Voltage: 250 V
