Bryant 9550FR Receptacle Straight Blade Industrial A

Product Description

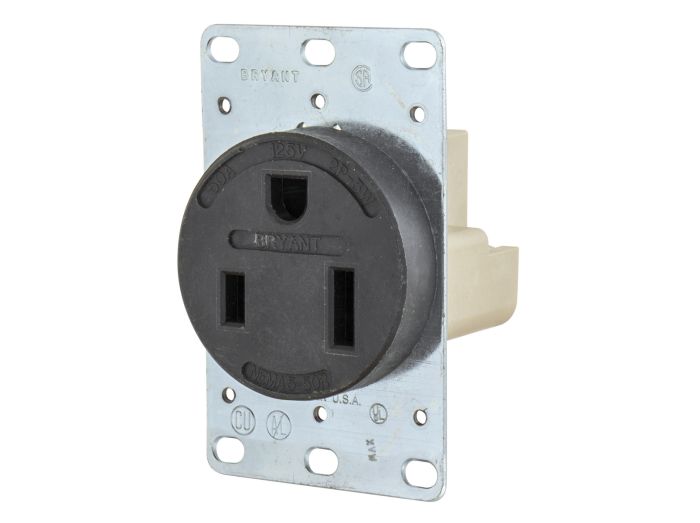

The BRYANT 9550FR is a straight blade, industrial grade receptacle. Constructed with reinforced thermoplastic polyester, it features a 1-piece double wipe power and ground contacts for excellent conductivity. Designed for demanding industrial and commercial applications, it ensures reliable long term service. It is a flush mount single receptacle.

• Industrial Grade
• Flush Mount Single
• Reinforced Thermoplastic Polyester
• Buy America(n) Qualified

Product Highlights

The BRYANT 9550FR receptacle is ideal for welders, generators, ovens, dryers, copiers and air conditioners.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9550FR
• Country of Origin: PR, US

Technical Specifications

• Manufacturer: Bryant Electric
• Manufacturer #: 9550FR
• Application: Industrial Grade
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Smooth Face
• Type: Single Receptacle
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 6250
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #10 AWG to #6 AWG
• Buy America(n) Qualified: BABA Compliant (All status valid till December 2026)
• Industry Standard(s): WR Rating
• Nema Rating: 5-50R
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Receptacle
• NEMA Configuration: 5-50R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Industrial Grade
• Frequency Rating: 60 Hz
• Grade: Commercial/Industrial
• Horsepower: 2 hp
• Material: Composite
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
