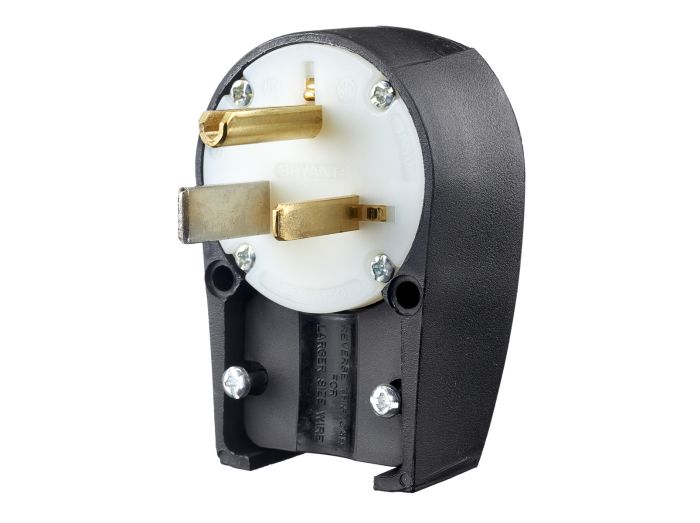

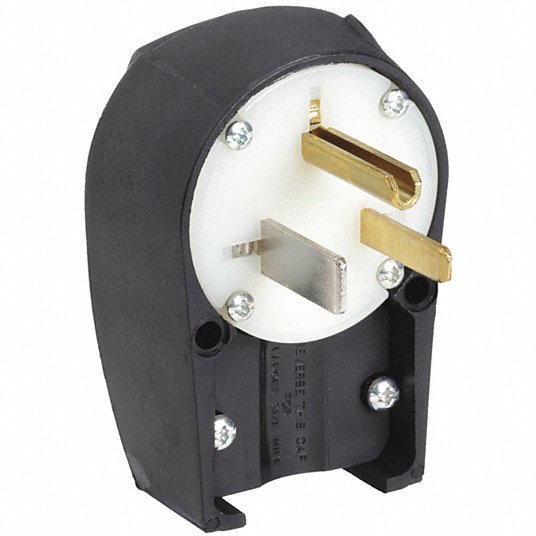

Bryant 9550ANPB Straight Blade Male Plug 50A 125V 5-50P

Product Description

The BRYANT 9550ANPB is a straight blade male plug designed for heavy-duty industrial and commercial applications. This angled nylon plug supports 50A at 125V and features a 2-pole, 3-wire grounding configuration with a NEMA 5-50P rating. Angled plugs help save space in confined areas and prevent accidental disconnections.

• Heavy Duty
• Industrial/Commercial Grade
• Angled
• Nylon

Product Highlights

Heavy-duty, angled nylon plug for industrial and commercial use, designed to save space and prevent disconnections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9550ANPB
• Country of Origin: US

Technical Specifications

• Application: Heavy Duty
• Catalog Number: 9550ANPB
• Color: Black/White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Heavy Duty
• Type: 1-Phase 12-Position Angled Heavy Duty Grounding Male Standard
• UPC: 781786676879
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Wattage: 6250
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #6 AWG
• Nema Rating: 5-50P
• Cord Type: All Portable
• Blade Material: Brass
• Body Length: 4.13 in
• Compatible Series: Hubbell Straight Blade
• Connection Orientation: Angled
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 1.38 in
• For Minimum Cable Diameter: 0.625 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black
• Housing Material: Nylon
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 6 AWG
• Number of Blades: 3
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Brand: BRYANT
• Cord Diameter: 0.625 to1.38 in
• Country of Origin: US
• Grade: Commercial/Industrial
• Manufacturer Name: Hubbell
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Pressure Screw
• Voltage: 125 VAC
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Cable Length: N/A
• Length: 4.300
• Width: 3.600
• Depth: 3.600
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
