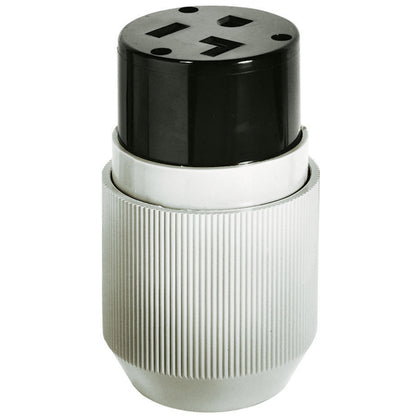

Bryant 9530NC Connector 30 Amp, 125V, Nema 5-30R

Product Description

The BRYANT 9530NC is an industrial-grade connector designed for heavy-duty use. It features a resilient dust seal to protect against moisture and contaminants. Its internal self-centering triple gripper cord grip ensures secure cord retention and reduces installation time. The connector's impact and chemical-resistant nylon construction provides enhanced durability.

• Resilient dust seal surrounds cord, helping to prevent moisture and contaminants from entering wiring chamber
• Internal “self-centering” triple gripper cord grip with “radius teeth” design provides secure cord retention and reduces installation time
• Transparent Terminal cover, extended “teardrop” wiring pockets and backed out “captive” Terminal screws simplify wiring

Product Highlights

This heavy-duty connector is ideal for industrial and commercial applications requiring a robust and reliable connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9530NC

Technical Specifications

• Brand: Bryant Electric
• Color: Gray
• Voltage: 125 VAC
• Connector Type: Plug in
• Number of Wires: 3
• Amperage: 30 Amps
• Specification Met: NEMA
• Material: Steel
• Manufacturer Part Number: 9530NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 2
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: 5-30R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Net Weight: 0.915 lbs
• Gross Weight: 1.15 lbs
