Bryant 9530FR Receptacle 30A 125V 5-30R

Product Description

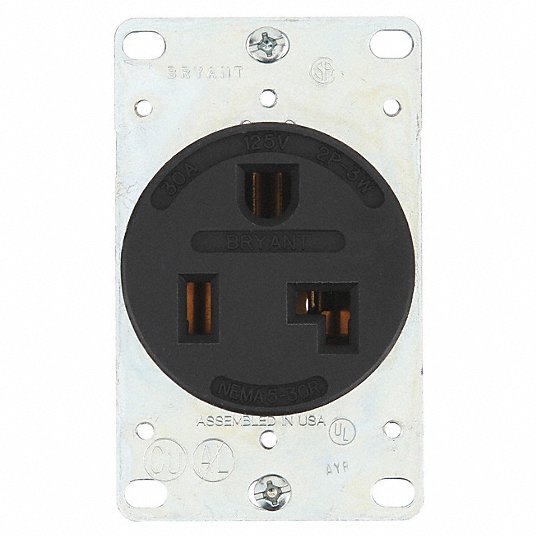

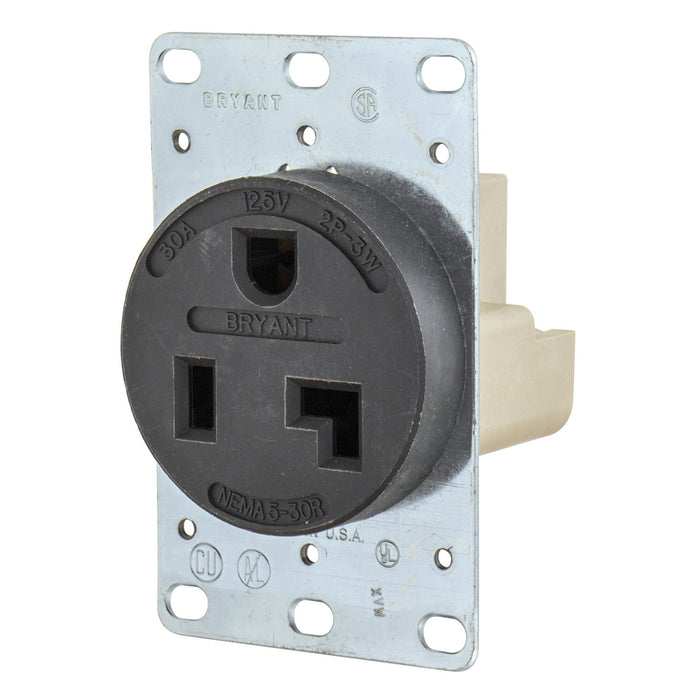

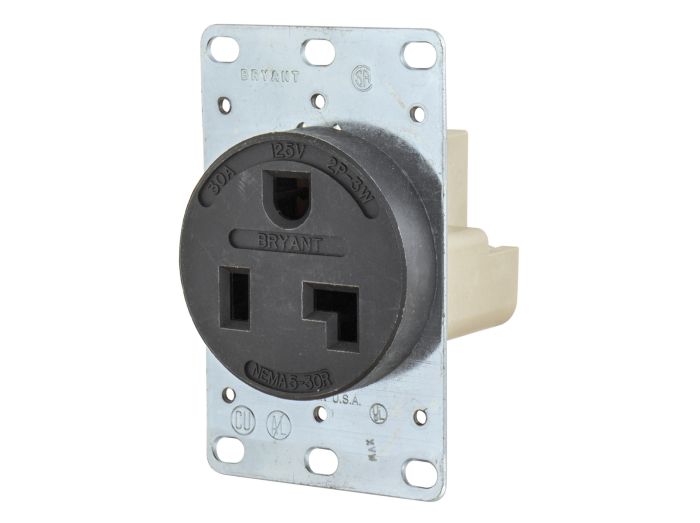

The BRYANT 9530FR is a flush mount single receptacle designed for commercial and industrial use. Made with reinforced thermoplastic polyester, this receptacle supports 30A and 125V. It is a 2-pole, 3-wire grounding device with a NEMA 5-30R configuration, suitable for standard installations requiring electrical performance and durability.

• Buy America(n) Qualified
• Industrial Grade
• Impact Resistant

Product Highlights

Flush mount single receptacle for commercial and industrial applications. Features robust construction and reliable performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9530FR
• Country of Origin: USA

Technical Specifications

• Application: Industrial Grade
• Catalog Number: 9530FR
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Smooth Face
• Type: Single Receptacle
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 3750
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #10 AWG to #6 AWG
• Industry Standard(s): WR Rating
• Nema Rating: 5-30R
• Product Name: Bryant Receptacle 30A 125V 5-30R (9530FR)
• Brand: Bryant
• SKU: 9530FR
• Mfr. Part Number: 9530FR
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No
• Cover: No
• Face Plate Height: 3.7 in
• Face Plate Width: 2.3 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black
• Housing Material: Thermoplastic
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 6 AWG
• Minimum Wire Size: 10 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-30R
• Number of Gangs: 1
• Number of Outlets: 2
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back
• Manufacturer Part Number: 9530FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Receptacle
• NEMA Configuration: 5-30R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Industrial Grade
