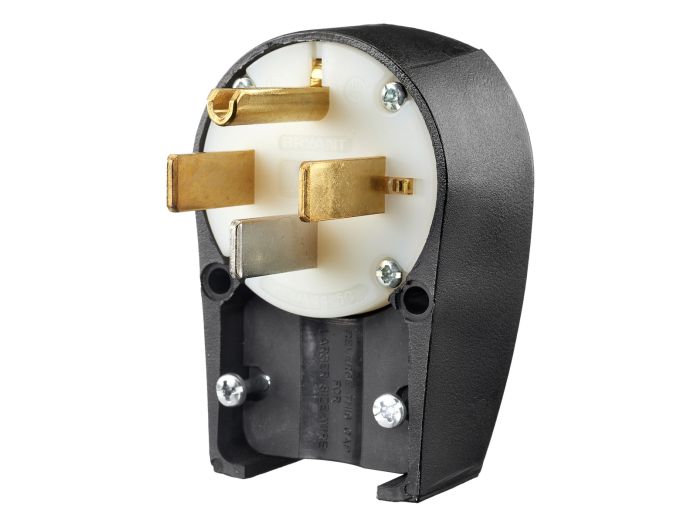

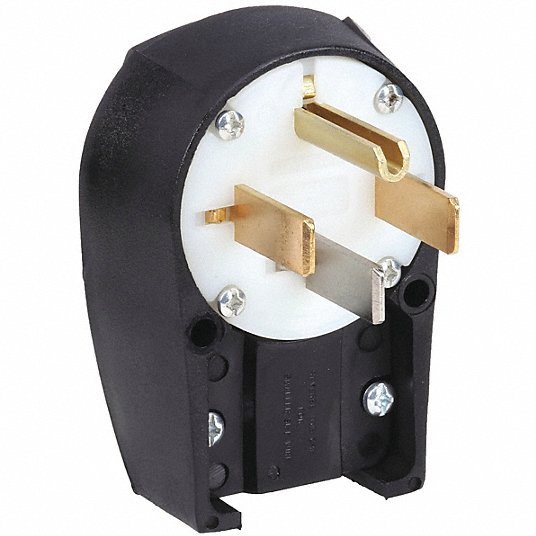

Bryant 9452ANPB Male Plug Heavy Duty Industrial/Commercial Grade 50A 125/250V Angled 14-50P

Product Description

The BRYANT 9452ANPB straight blade angled plug is engineered for EV charging applications. Constructed from industrial-grade nylon, this heavy-duty plug offers durability, safety, and high performance. It features a 4-position, angled layout with 3 poles and 4 wires, including grounding. Designed for easy operation in tight spaces, ensuring safe and effortless insertion and removal.

• Engineered specifically for EV charging applications
• Crafted from industrial-grade nylon
• Includes a 4-position, angled layout with 3 poles and 4 wires, grounding included
• Boasting a 50A, 125/250V capacity

Product Highlights

Heavy-duty, industrial/commercial grade angled plug designed for EV charging with robust construction and safety features.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9452ANPB
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty; Industrial
• Catalog Number: 9452ANPB
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Heavy Duty
• Type: Plug
• UPC: 781786676404
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 125/250 V
• Wattage: 12500
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #6 AWG
• Nema Rating: 14-50P
• Cord Type: All Portable
• Brand: BRYANT
• Manufacturer Part Number: 9452ANPB
• Blade Material: Brass
• Body Length: 4.13 in
• Compatible Series: Hubbell Straight Blade
• Connection Orientation: Angled
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 1.38 in
• For Minimum Cable Diameter: 0.625 in
• Grounding: Grounded
• Horsepower Rating: 2 hp; 3 hp
• Housing Color: Black
• Housing Material: Nylon
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 6 AWG
• NEMA Plug Configuration: 14-50P
• Number of Blades: 4
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Voltage: 125/250VAC
• HP: 2.0 Line to Neutral, 3.0 Line to Line
• Cord Size: 0.625 in to 1.380 in
