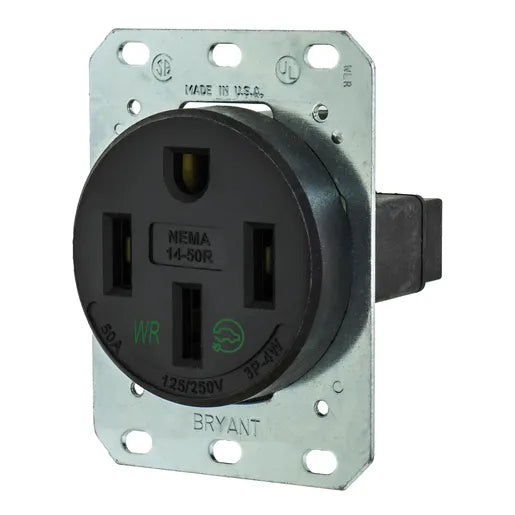

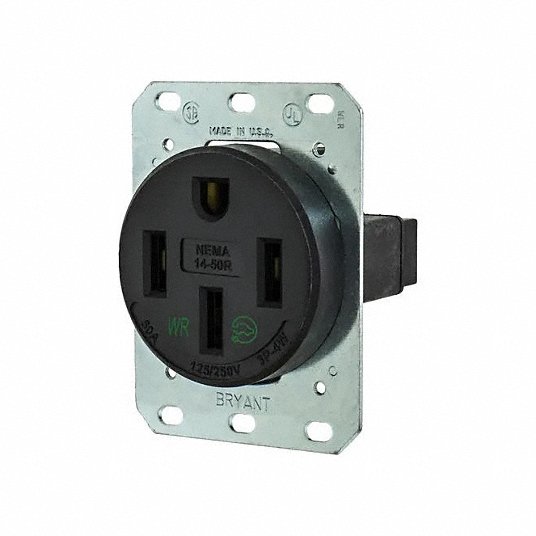

Bryant 9450FR Industrial Grade 50 Amp NEMA 14-50 Receptacle

Product Description

The BRYANT 9450FR is an industrial grade 50 Amp NEMA 14-50 receptacle. Made in the USA, this single flush receptacle features a 3 pole 4 wire grounding configuration and is rated for 125/250V. Designed for standard installations where electrical performance and durability are required.

• Industrial Grade
• Made in USA
• Single Flush

Product Highlights

This receptacle ensures a safe and efficient charging experience, providing peace of mind to EV users.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9450FR
• Country of Origin: USA

Technical Specifications

• Brand: Bryant
• Color: Black
• Material: Nylon
• Voltage: 250 Volts
• Power Plug Type: Type B - 3 pin (North American)
• Amperage: 50 Amps
• Connector Type: Nema 14-50
• Smart Home Compatibility: Not Smart Home Compatible
• Total Power Outlets: 1
• Specification Met: CE, CSA, NEMA, UL
• Application: Industrial Grade
• Catalog Number: 9450FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Heavy Duty
• Type: Single Receptacle
• UPC: 781786676237
• Weight: 0.65 lb
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 125/250 V
• Voltage Rating Description: 125/250 V
• Wattage: 12500
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #6 AWG
• Buy America(n) Qualified: BABA Compliant (All status valid till December 2026)
• Industry Standard(s): WR Rating
• Nema Rating: 14-50R
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No Cover
• For Environment: Industrial
• GFCI: No
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Color: Black
• Housing Material: Thermoplastic
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Industrial
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 14-50R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back
• UNSPSC: 39121406
• Manufacturer: Bryant
• Model: 9450
• Locale: U S
