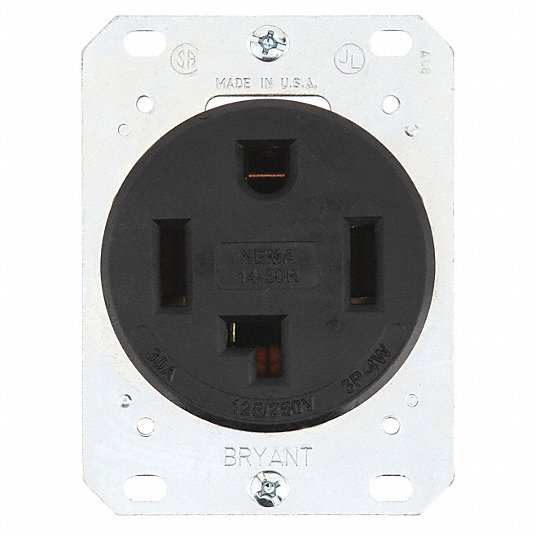

Bryant 9430FR Receptacles Flush Mount Single 30A 125/250V 14-30R

Product Description

The BRYANT 9430FR is a flush mount single receptacle designed for industrial-grade applications. Rated at 30A and 125/250V, this receptacle ensures a safe and efficient charging experience, providing peace of mind. It incorporates features optimized for the safe and efficient charging of electric vehicles. Designed for standard installations where electrical performance and durability are required.

• Purpose-built to cater to the specific needs of EV charging.
• Engineered using high quality materials that can withstand demanding environments, ensuring long-lasting performance and reliability.
• The thick wall terminal box delivers a secure and reliable connection, minimizing power interruptions, and fluctuations for a stable power supply.

Product Highlights

The receptacle features a 3-pole, 4-wire grounding configuration, providing a secure electrical connection for EV charging. Designed with user convenience in mind, it offers a hassle-free installation process.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9430FR
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 9430FR
• Application: Industrial Grade
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Smooth Face
• Type: Single Receptacle
• UPC: 781786675933
• Display Size: Standard Sized Product
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 V
• Voltage Rating Description: 125/250 V
• Wattage: 7500
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #6 AWG
• Industry Standard(s): WR Rating
• Nema Rating: 14-30R
• Mounting Style: Flush
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No
• Cover: No
• Face Plate Height: 3.7 in
• Face Plate Width: 2.3 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black
• Housing Material: Thermoplastic
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 6 AWG
• Minimum Wire Size: 10 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 2
• Overall Depth: 2.3 in
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Voltage: 125/250VAC
• Tamper Resistant: No
• Application Environment: Industrial
• Outlet Type - Plugs and Receptacles: Single
• HP: 2 hp
• Outlet Type: Single
• Wiring Method - Plugs and Receptacles: Back and Side
• Material: Thermoplastic Polymer
• Weather Resistant: No
• Mounting Type - Plugs and Receptacles: Flush
• Sub-Category: Single Receptacles
• NEMA Receptacle Configuration - Plugs and Receptacles: 14-30R
• Power Indicator: No
• Weather Resistant - Plugs and Receptacles: No
• Corrosion Resistant: No
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Mfr. Part Number: 9430FR
