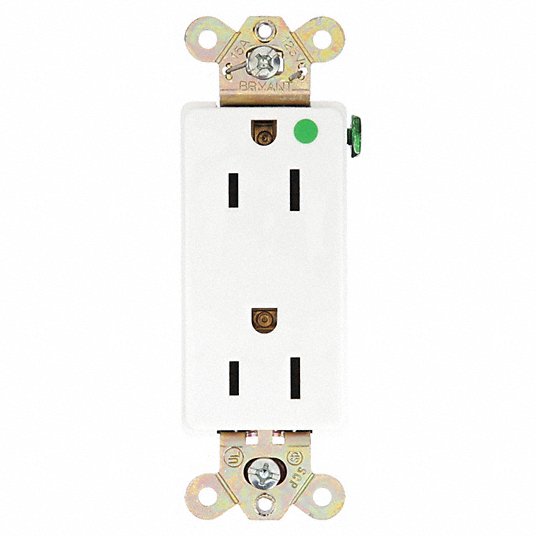

Bryant 9200w hospital grade receptacle 15A, 125V

Product Description

The Bryant 9200W is a hospital-grade receptacle designed for standard installations where electrical performance and durability are required. This decorator duplex receptacle provides basic, non-locking power connections. It is rated for 15A and 125V AC, and features screw terminals for wire connections.

• Connection Orientation Straight
• Housing Material Composite
• Made in United States

Product Highlights

The Bryant 9200W receptacle is UL Listed and CSA Certified. Suitable for indoor use.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9200W
• Country of Origin: US

Technical Specifications

• Brand: Bryant Electric
• Manufacturer Part Number: 9200W
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No Cover
• Current Rating: 15 A
• Face Plate Height: 2.8 in
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: White
• Housing Material: Composite
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Overall Depth: 1 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Decorator Duplex
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Material: nylon, nickel, iron, brass, polyester, Thermoplastic
• Voltage: 125 Volts
• Amperage: 15 Amps
• Specification Met: UL
