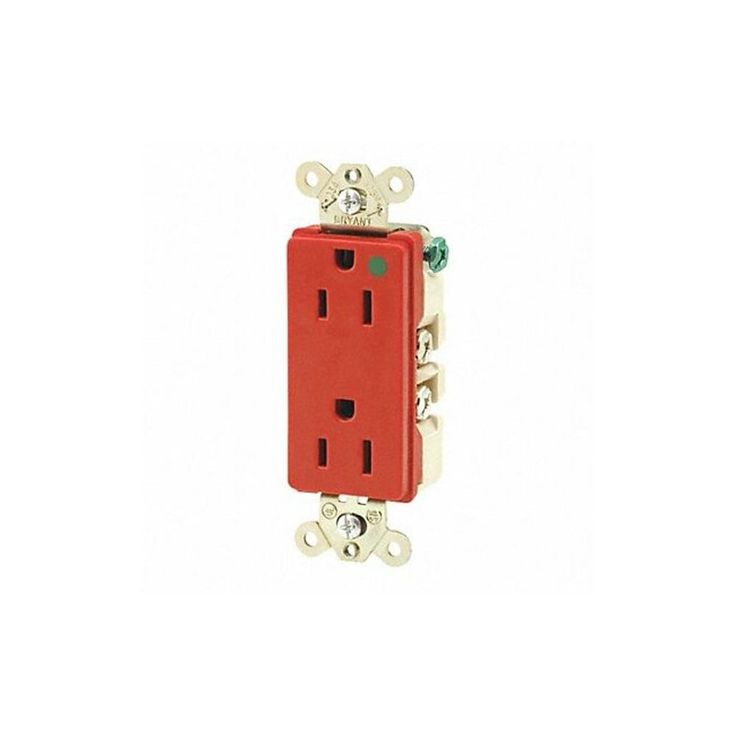

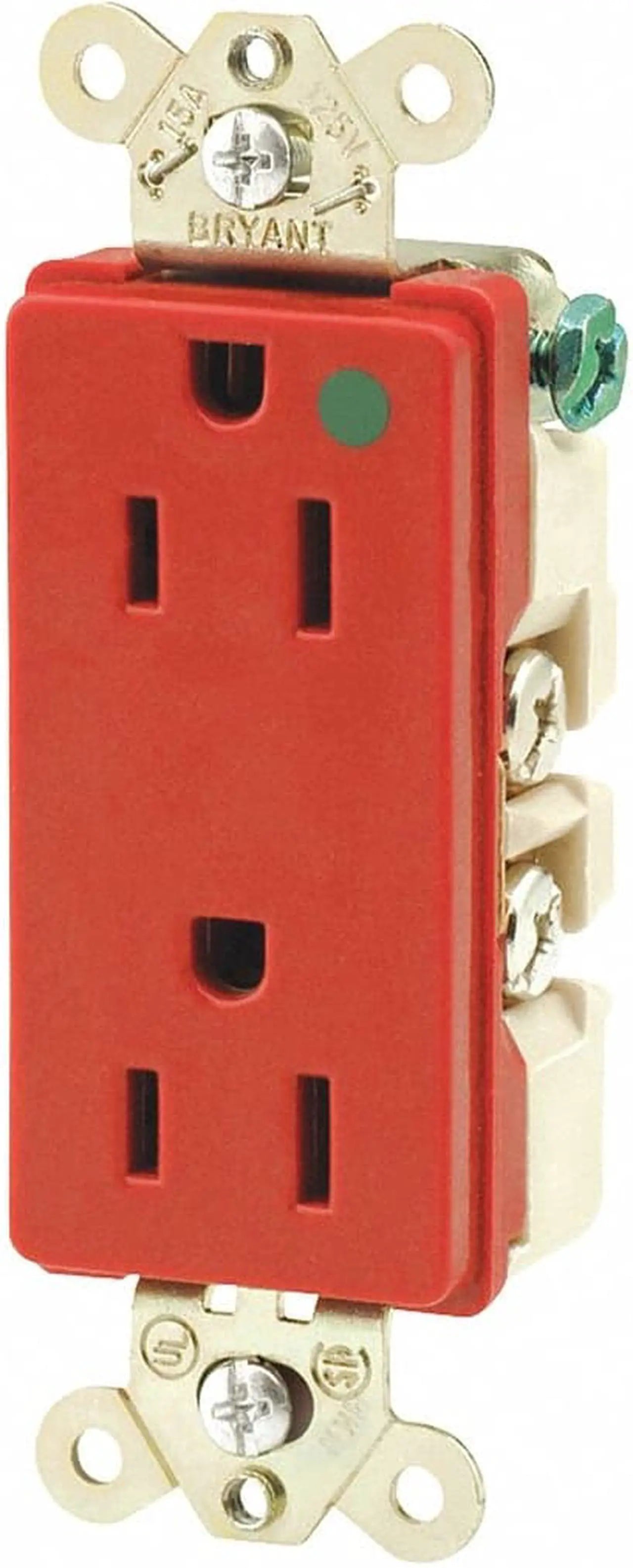

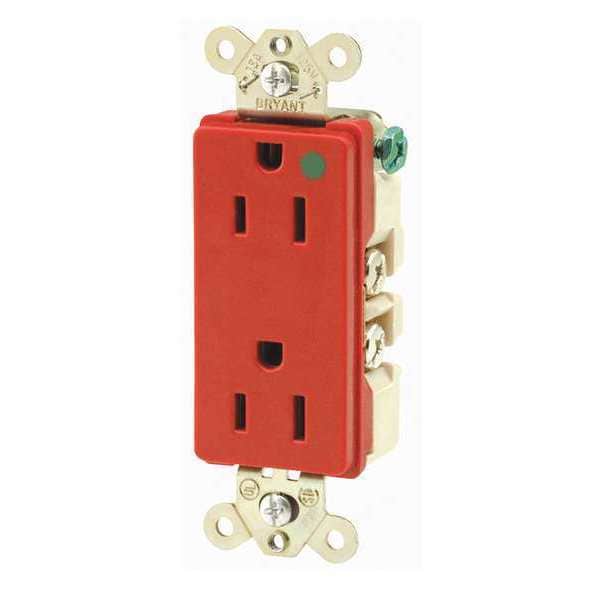

Bryant 9200RED Hospital Grade Receptacle 15 A, 125V AC, 5-15R

Product Description

The BRYANT 9200RED is a hospital-grade receptacle designed for environments requiring robust and reliable power connections. This straight blade receptacle features a NEMA 5-15R configuration, supporting 15A and 125V AC. It is built to withstand demanding conditions, ensuring consistent performance and safety.

• Duplex receptacle with a NEMA 5-15R configuration.
• Rated for 15A and 125V AC.
• Designed for hospital-grade applications.

Product Highlights

This receptacle is ideal for hospital environments, providing a safe and reliable power connection where durability and consistent performance are essential.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9200RED
• Country of Origin: United States

Technical Specifications

• MFR #: 9200RED
• Zoro #: G4819370
• UPC #: 781786741157
• Country of Origin: United States
• Overall Depth: 1 in
• Face Plate Height: 2.8 in
• Face Plate Width: 1.4 in
• Minimum Wire Size: 14 AWG
• Maximum Wire Size: 12 AWG
• Item: Straight Blade Receptacle
• Receptacle Type: Duplex
• NEMA Receptacle Configuration: 5-15R
• Current Rating: 15 A
• Voltage Rating: 125V AC
• Phase: Single
• Number of Poles: 2
• Number of Wires: 3
• Wire Connection Type: Screw Terminals
• Wiring Method: Back, Side
• Grounding: Grounded
• Housing Color: Red
• Mount Type: Flush
• Standards: CSA Certified, UL Listed
• Resistance Properties: Corrosion Resistant
• Flange Type: Non-Flanged
• Application Environment: Hospital Grade
• Outlet Type: Decorator
• Corrosion Resistant: Yes
• Wiring Method - Plugs and Receptacles: Back and Side
• Material: Nylon
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R
• Voltage: 125VAC
• Sub-Category: Decorator Receptacles
• HP: 1/2 hp
• Mounting Type: Flush
• Weather Resistant: No
• Outlet Type - Plugs and Receptacles: Decorator Duplex
• Special Features: Corrosion resistant
• Weather Resistant - Plugs and Receptacles: No
• Surge Suppression: No
• Mounting Type - Plugs and Receptacles: Flush
• Power Indicator: No
• Number of Gangs: 1
• Tamper Resistant: No
• Cover Type: No Cover
• Grade: Hospital Grade
• Surge Protection: No
• Connection Orientation: Straight
• AFCI: No
• GFCI: No
• Polarized: Yes
• Housing Material: Composite
• For Location: Indoor
• Includes Mounting Hardware: Yes
• Includes: Mounting Hardware
• Horsepower Rating: 1/2 hp
• Application: Hospital Grade
• IP Rating: IP20
• Mounting Location: Outlet Box
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• UNSPSC: 39121406
