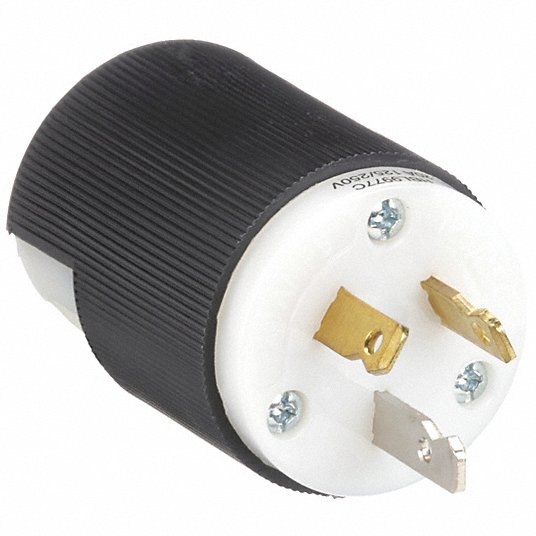

Bryant 9151n Straight Blade Devices Male Plug 20A 125/250V 10-20P

Product Description

The BRYANT 9151N is a straight blade male plug designed for heavy-duty industrial and commercial applications. This 3-pole, 3-wire non-grounding plug supports 20A at 125/250V and features screw terminals for secure wire connections. It is suitable for indoor dry environments unless protected by additional means.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 3-Pole 3-Wire Non-Grounding
• 20A 125/250V

Product Highlights

This straight blade plug is ideal for inline connections with receptacles and connectors to supply equipment with power.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 9151N
• Country of Origin: USA

Technical Specifications

• Application: Heavy Duty
• Catalog Number: 9151N
• Color: Black and White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Heavy Duty
• Type: Plug
• UPC: 781786631403
• Length: 2.5 in
• Width: 1.31 in
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 10-20P
• Cord Type: All Portable
• Model: 9151N
• Brand: BRYANT
• Body Length: 2.5 in
• Compatible Series: Hubbell Straight Blade
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.91 in
• For Minimum Cable Diameter: 0.32 in
• Grounding: Non-Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black; White
• Housing Material: Nylon
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• NEMA Plug Configuration: 10-20P
• Number of Blades: 3
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Connector Type: Plug
• Grade: Industrial
• Connector Angle: No Angle
• Amperage: 20 A
• Grounding Style: Self-Grounded
• Resistance Features: Impact-Resistant
• Number Of Phases: 1
• Body Material: Composite
• Nema Configuration: 10-20P
