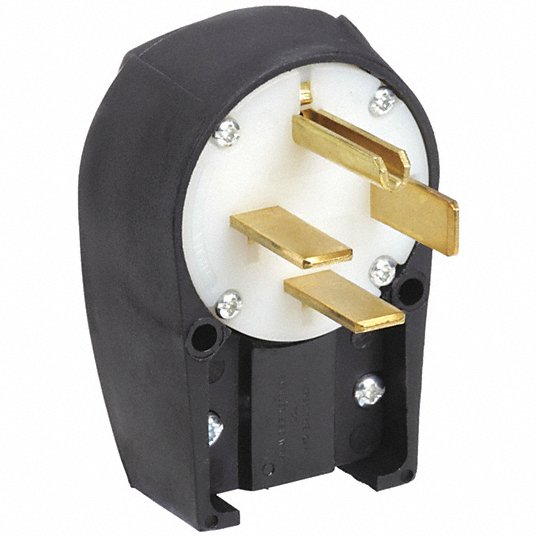

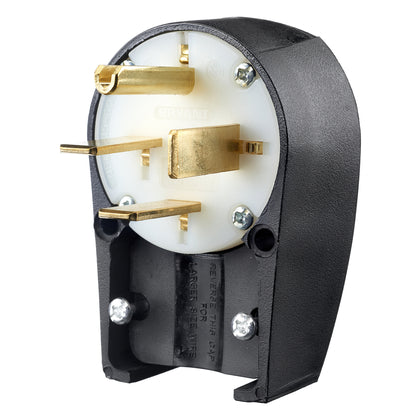

Bryant 8462ANPB Straight Blade Male Plug 60A 3-Phase 250V AC (Single Pack) 15-60P

Product Description

The BRYANT 8462ANPB is a straight blade male plug designed for heavy-duty industrial and commercial applications. Rated at 60A 3-Phase 250V AC, this 3-pole, 4-wire grounding plug features an angled design. It is ideal for indoor dry environments and is constructed from durable composite material.

• Heavy Duty
• Industrial/Commercial Grade
• Angled
• 60A 3-Phase 250V AC

Product Highlights

This angled plug saves space and helps prevent accidental disconnections in confined areas.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 8462ANPB
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty
• Catalog Number: 8462ANPB
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Heavy Duty
• Type: Plug
• UPC: 781786674325
• Amperage Rating: 60 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 60 A
• Phase: Three Phase
• Voltage Rating: 250V AC
• Voltage Rating Description: 3 Phase 250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #6 AWG to #4 AWG
• Nema Rating: 15-60P
• Cord Type: All Portable
• Brand: BRYANT
• MPN: 8462ANPB
• Country of Origin: United States
• Blade Material: Brass
• Compatible Series: Hubbell Straight Blade
• Connection Orientation: Angled
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 1.38 in
• For Minimum Cable Diameter: 0.625 in
• Grounding: Grounded
• Horsepower Rating: 10 hp
• Housing Color: Black
• Housing Material: Nylon
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 4 AWG
• Minimum Wire Size: 6 AWG
• NEMA Plug Configuration: 15-60P
• Number of Blades: 4
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
