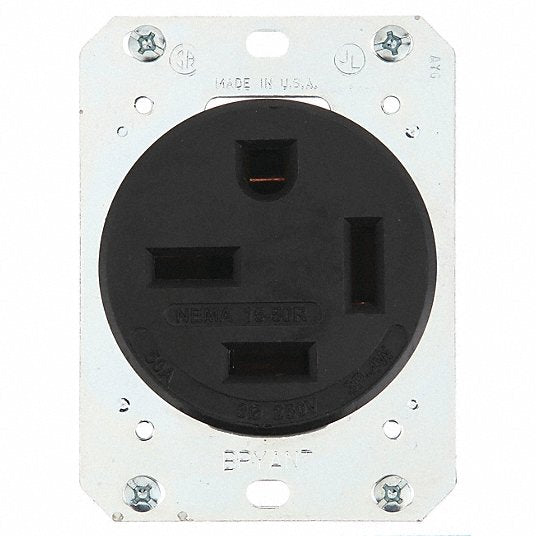

Bryant 8450FR Receptacle 50 Amp 250V NEMA 15-50R

Product Description

The Bryant 8450FR is a 50 Amp heavy-duty straight blade receptacle with a rugged design. Its reinforced thermoplastic polyester face and base provide terminal insulation, heat, and impact resistance. It ensures reliable long-term service for demanding industrial and commercial applications. Designed for standard installations where electrical performance and durability are required.

• Face and base molded of heat and impact-resistant reinforced thermoplastic polyester
• Lug type terminals bundle strands to provide secure terminations
• Captive Allen head terminal screws permit high clamping pressure

Product Highlights

This receptacle is ideal for welders, generators, ovens, dryers, copiers, and air conditioners.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 8450FR
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 8450FR
• Color: Black
• Voltage: 250 Volts
• Amperage: 50 Amps
• Connector Type: Nema 15 50r
• Total Power Outlets: 1
• Specification Met: NEMA
• Application: Industrial Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material: Composite/Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• UPC: 781786674103
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Phase: Three Phase
• Voltage Rating: 250V AC
• Wattage: 12500
• Number Of Poles: 3
• Number Of Wires: 4-Wire Grounding
• Wire Size: #10 AWG to #6 AWG
• Industry Standard(s): WR Rating
• Nema Rating: 15-50R
• Mounting Style: Flush
• Type: Standard Outlets
• Size: 50 Amp
• Item Height: 3.68
• Item Length: 2.25
• Item Width: 2.45
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No
• Cover: No
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 7-1/2 hp
• Housing Color: Black
• Housing Material: Composite
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Wire Size: 6 AWG
• Minimum Wire Size: 10 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 15-50R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Heat Resistant, Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back
• Frequency Rating: 60 Hz
• Horsepower: 7-1/2 hp
• Manufacturer Name: Hubbell
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
