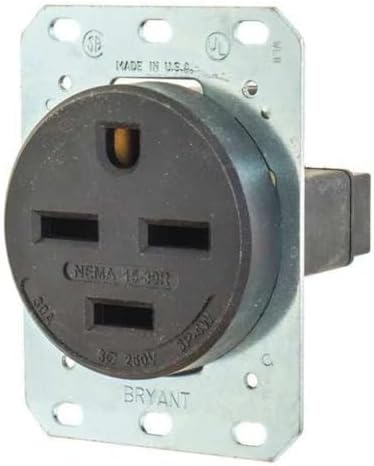

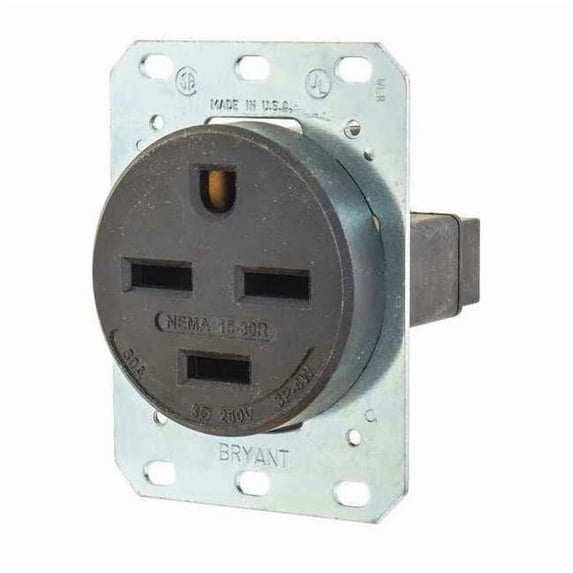

Bryant 8430FR Receptacle 30 Amp 250V 15-30R

Product Description

The BRYANT 8430FR is a heavy-duty straight blade receptacle with a reinforced thermoplastic polyester face and base for terminal insulation and resistance to heat and impact. One-piece double wipe power and ground contacts provide excellent conductivity and low resistance connections. It is suitable for industrial and commercial applications.

• Face and base molded of heat and impact-resistant reinforced thermoplastic polyester
• Lug type terminals bundle strands to provide secure terminations
• Captive Allen head terminal screws permit high clamping pressure

Product Highlights

The BRYANT 8430FR receptacle ensures reliable long-term service for demanding industrial and commercial applications. UL listed and CSA certified.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 8430FR
• Country of Origin: US

Technical Specifications

• Brand: Bryant Electric
• Color: Black
• Material: Thermoplastic Polymer
• Voltage: 250 Volts
• Amperage: 30 Amps
• Connector Type: Plug-In
• Smart Home Compatibility: Not Smart Home Compatible
• Connectivity Technology: Pressure Terminal Screws
• Total Power Outlets: 1
• Specification Met: NEMA
• Application: Industrial Grade
• Catalog Number: 8430FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Smooth Face
• Type: Single Receptacle
• UPC: 781786673854
• Amperage Rating: 30 A
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 250 V
• Wattage: 3750
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #6 AWG
• Industry Standard(s): WR Rating
• Nema Rating: 15-30R
• Current Type: AC
• Model: 8430FR
• Country of Origin: US
• Electrical outlet type: 30A 250V Outlet
• Amps: 30 Amps
• Count per pack: 1
• Flange Type: Non-Flanged
• For Location: Indoor
• Grade: General Use
• Horsepower Rating: 3 hp
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Wire Size: 6 AWG
• Minimum Wire Size: 10 AWG
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 2
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back
• UNSPSC: 39121406
• Features: Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 15-30R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Resistance Properties Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Method Back, AFCI No
