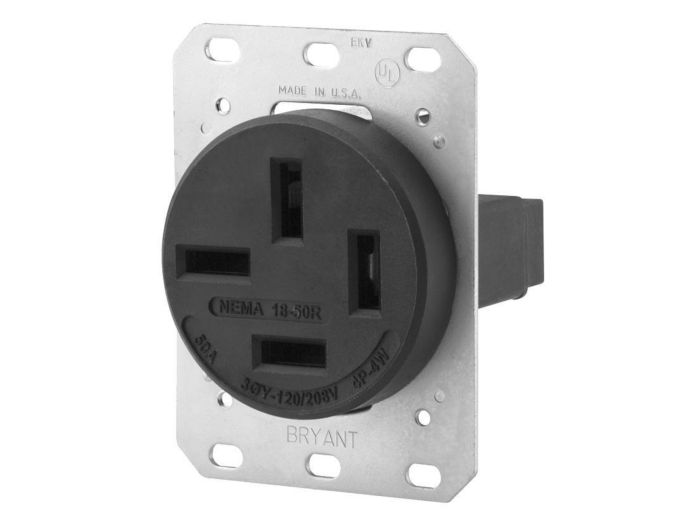

Bryant 8350FR Rcpt, 50A 3Ph 120/208V, 18-50R

Product Description

The BRYANT 8350FR is a receptacle designed for industrial use. This flush mount single receptacle supports 50A 3-phase 120/208V AC, 4-pole 4-wire non-grounding connections with a NEMA 18-50R configuration. It is constructed with a molded urea face material.

• Single Type
• Molded Urea Face Material
• 120/208 V Star 3 Phase Voltage Rating
• Flush Mounting

Product Highlights

Industrial grade receptacle with a NEMA 18-50R configuration, suitable for 50A 3-phase power at 120/208V.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 8350FR
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: 8350FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 50 A
• Number of Poles: 4
• Number of Wires: 4
• Voltage: 120 VAC, 208 VAC
• Phase: 3Y
• Connection Type: Receptacle
• NEMA Configuration: 18-50R
• Color: Black
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL, NOM
• Comments: Industrial Grade
• Mounting Depth: 1.8 Inch
• Face Outer Diameter: 2.43 Inch
• Mounting Style: Flush
• Country of Origin: Mexico
