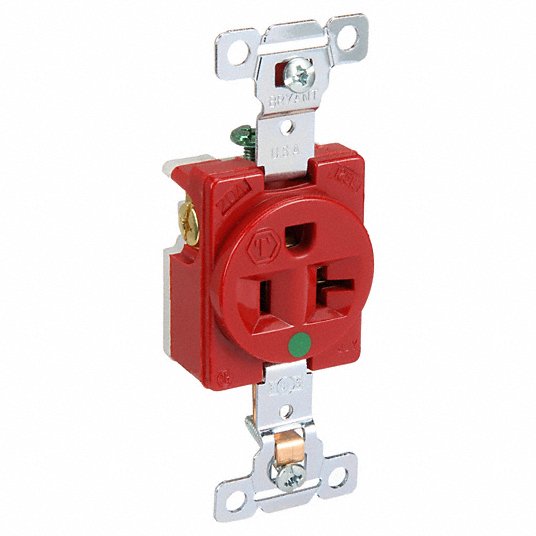

Bryant 8310RED Receptacle Straight Blade Hospital Grade

Product Description

The Bryant 8310RED is a straight blade, hospital-grade receptacle designed for standard installations requiring electrical performance and durability. It provides basic, non-locking power connections without added protection or monitoring features. This receptacle is suitable for industrial and medical applications.

• Hospital Grade receptacle
• 20A and 125V AC
• Grounded with screw terminals

Product Highlights

The Bryant 8310RED receptacle is ideal for industrial and medical settings, ensuring reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 8310RED
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 8310RED
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Copper
• Cover Type: No Cover
• Current Rating: 20 A
• Face Plate Height: 1.8 in
• GFCI: No
• Grade: Hospital Grade
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Red
• Housing Material: Nylon
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Industrial
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Overall Depth: 1.4 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Single
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Amperage: 20A
• NEMA Configuration: 5-20R
• Application Grade: Hospital
• Model: 8310RED
• Type: Straight Blade Receptacles
• UPC: 781786672932
