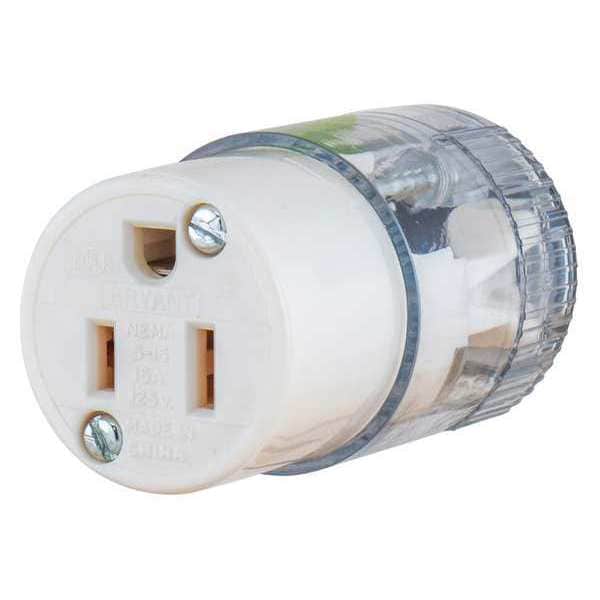

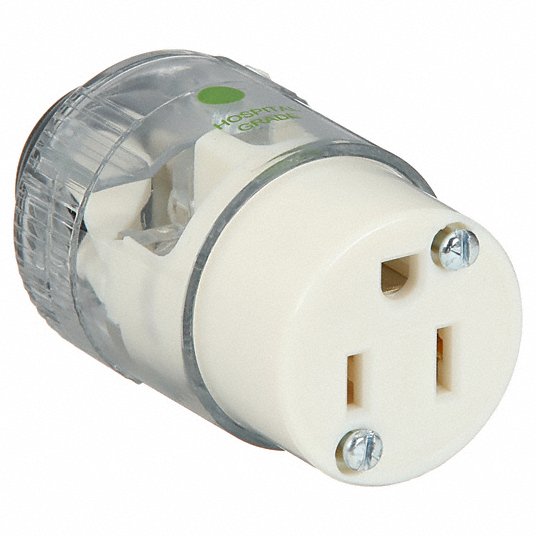

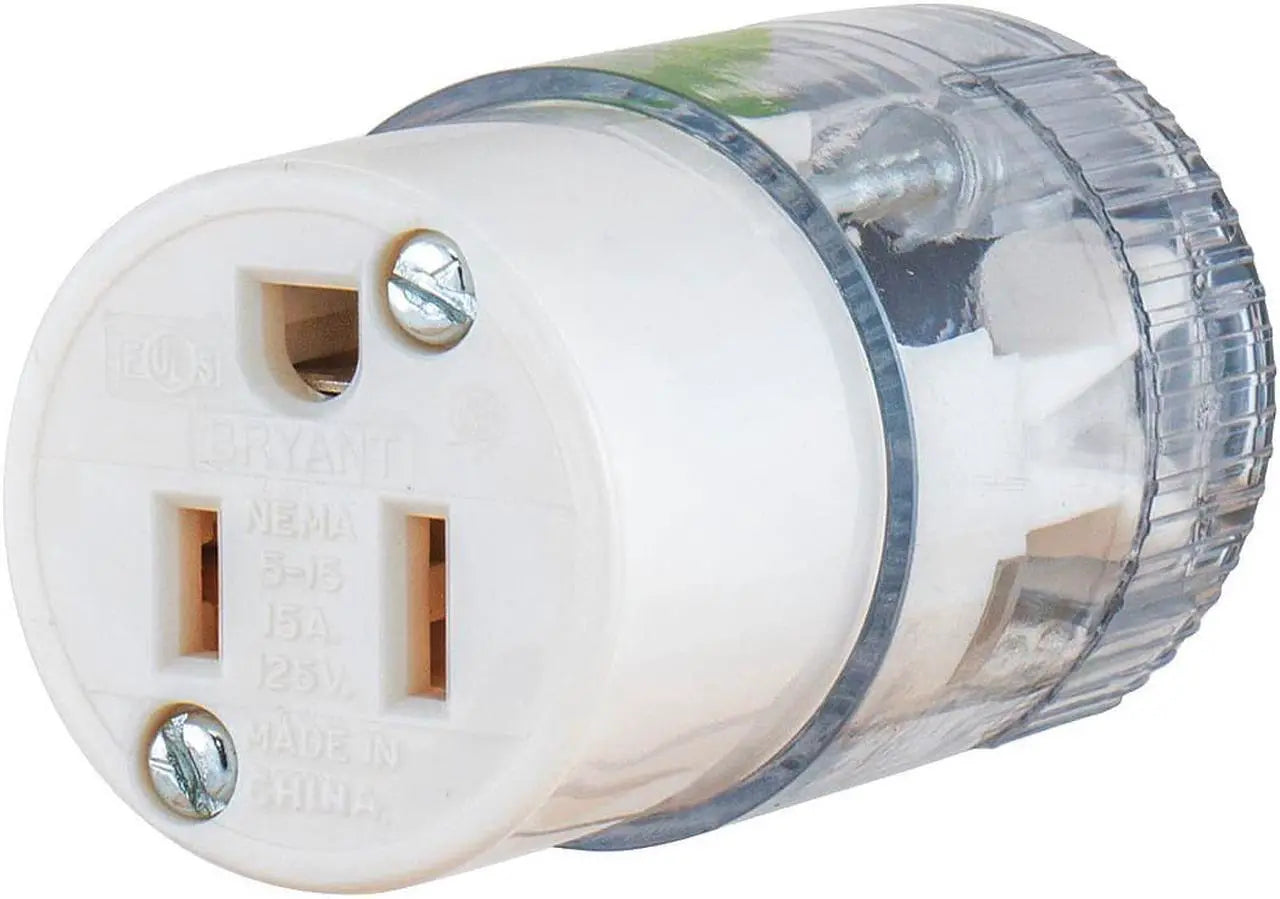

Bryant 8269T Straight Blade Connector 15A 125V NEMA 5-15R

Product Description

The Bryant 8269T straight blade connector features terminations with screws that tighten down on conductors to secure them in place. It makes inline connections with plugs to supply equipment with power. Rated at 15A and 125V, this connector is suitable for various applications.

• Hospital grade connector
• Screw terminals for secure wire connections
• Dust ignition proof and impact resistant

Product Highlights

The Bryant straight blade connector is ideal for connecting equipment to power sources, ensuring a reliable and safe electrical connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 8269T
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 8269T
• Cap Type: No Cap or Cover
• Compatible with Series: Hubbell Straight Blade
• Connection Orientation: Straight
• Contact Material: Copper
• Current Rating: 15 A
• For Maximum Cable Diameter: 0.66 in
• For Minimum Cable Diameter: 0.25 in
• Grade: Hospital Grade
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Thermoplastic Elastomer
• IP Rating: Not Rated
• Insulation Material: Thermoplastic Elastomer
• Maximum Operating Temperature: 140 0F
• Maximum Wire Size: 10 AWG
• Minimum Operating Temperature: -40 0F
• Minimum Wire Size: 18 AWG
• NEMA Receptacle Configuration: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Overall Length: 2.95 in
• Phase: Single
• Power Indicating Light: No
• Resistance Properties: Dust Ignition Proof; Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; Federal Specification W-C-596; NEMA WD-1; NEMA WD-6; UL 498
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Connector Type: Straight Blade
• Cord Diameter: 0.245 - 0.655 in
• Material: Nylon/Polycarbonate
• Country of Origin: United States
