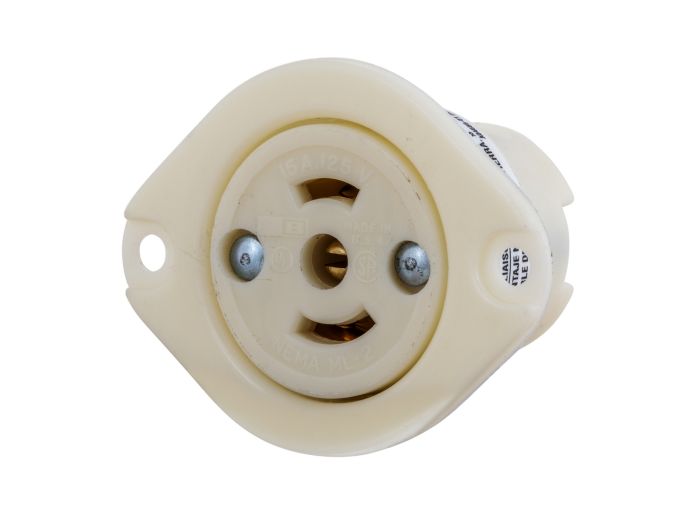

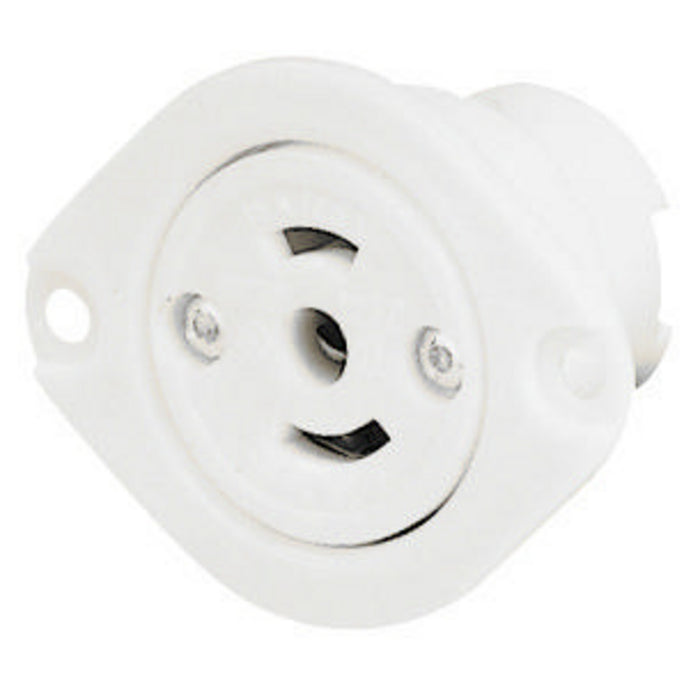

Bryant 7596ER Midget Locking Flanged Receptacle 15A 125V ML-2R

Product Description

The BRYANT 7596ER is a midget locking flanged receptacle. This industrial-grade receptacle is rated for 15A and 125V, and features 2-pole, 3-wire grounding. Designed for extra heavy-duty industrial applications, it's suitable for indoor dry environments unless protected by additional means.

• Industrial flanged receptacle
• Rated for 15A and 125V
• 2-Pole 3-Wire Grounding

Product Highlights

The Bryant 7596ER is ideal for industrial applications requiring a robust and reliable flanged receptacle.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7596ER
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 7596ER
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Midget Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Grounding
• Type: Flanged Receptacle
• UPC: 781786671454
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #12 AWG
• Nema Rating: ML-2R
• Manufacturer Part Number: 7596ER
• Manufacturer: Bryant Electric
• Product Series: MIDGET
• Family Series: Bryant Electric Plugs & Receptacles, Midget Series
• Description: Locking Devices, Bryant Midget Locking, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, ML-2R, Screw Terminal, Black White
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Volts AC: 120
• Amps: 15
• Mounting Style: Flange
• Product Name: Bryant Locking Flanged Receptacle Midget 15A 125V ML-2R (7596ER)
• Brand: Bryant
• SKU: 7596ER
• Mfr. Part Number: 7596ER
• UPC Code: #781786671454
