Bryant 7568NP Locking Devices, Industrial, Male Plug, 15A 125V/10A 250V

Product Description

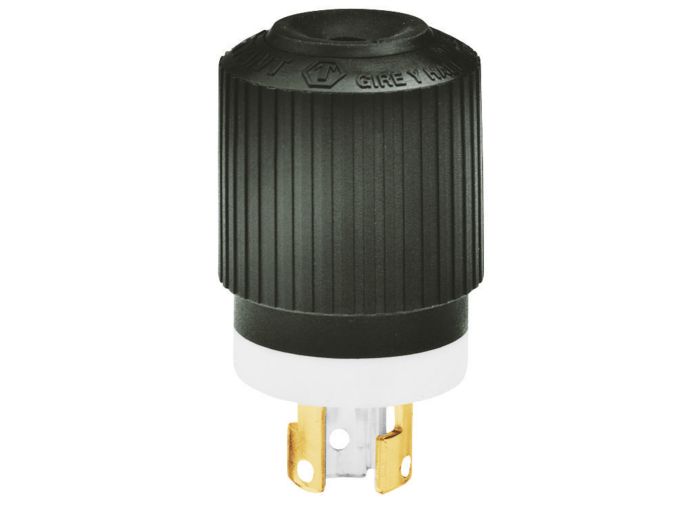

The BRYANT 7568NP is an industrial male plug designed for locking devices. This 3-pole, 3-wire non-grounding plug features screw terminals and a non-NEMA configuration. The hand grip has a wide-rib, non-slip design, and the configuration-specific plug face prevents contaminant infiltration. Double wall construction provides extra durability.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

Industrial male plug with non-slip design and secure cord retention for heavy-duty applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7568NP

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 7568NP
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 10A Triple Gripper Nylon Plug Non-NEMA
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786010451
• Dimensions: 1.53 in x 1.53 in x 2.18 in
• Height: 2.18 in
• Length: 1.53 in
• Width: 1.53 in
• Amperage Rating: 10 A
• Connectivity: Screw Terminals
• Current Amperage Description: 10 Amp
• Current Rating: 10 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: Non-NEMA
• Cord Type: All Listed Portables
• Manufacturer Part Number: 7568NP
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Comments: Replacement Use Only
• Brand: Bryant
• Features: Locking Plug
• Maximum Input Current: 15 A
• Output Voltage: 125 V
• Category: Plug/Receptacle
