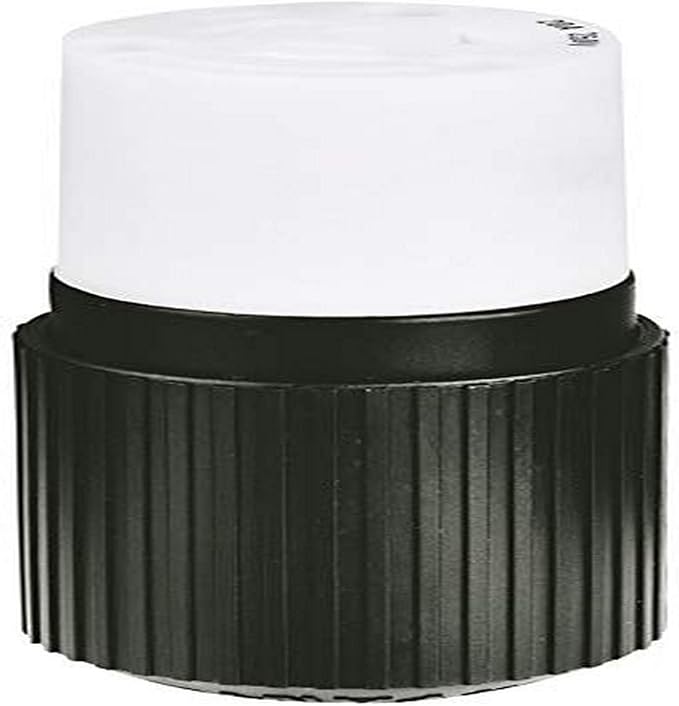

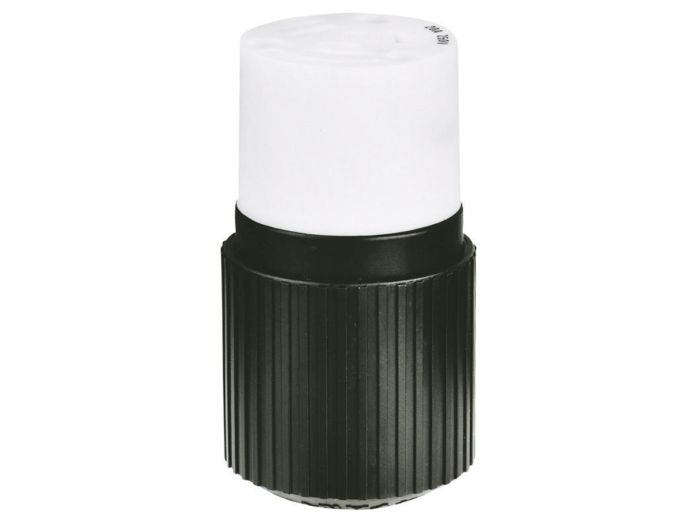

Bryant 7565NC Female Connector Body 15A 125V/10A 250V

Product Description

The BRYANT 7565NC is an industrial female connector body. This non-NEMA, 3-pole, 3-wire non-grounding connector features screw terminals and is suitable for heavy-duty industrial applications. It supports 10A at 250V and 15A at 125V.

• Internal self-centering triple gripper cord grip provides secure cord retention
• Transparent terminal cover simplifies wiring
• Impact and chemical resistant nylon construction for durability

Product Highlights

This Bryant Electric connector body is designed for reliable and safe electrical connections in demanding industrial environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7565NC
• Country of Origin: China

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 7565NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 10A Triple Gripper Nylon Connector Non-NEMA
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786010505
• Amperage Rating: 15A
• Connectivity: Screw Terminals
• Current Amperage Description: 10 Amp
• Current Rating: 10 A
• Voltage Rating: 125V
• Voltage Rating Description: 250 V
• Conductor Range: #14 AWG to #12 AWG
• Number of Conductors: 3-Wire Non-Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 3
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: Non-NEMA
• Manufacturer Part Number: 7565NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
• Comments: Replacement Use Only
• Included Components: Electrical Connector Body
• Batteries Required?: No
• Ground: Non-Grounding
• Rating - Amps: 15A
• Rating - Volts: 125V
