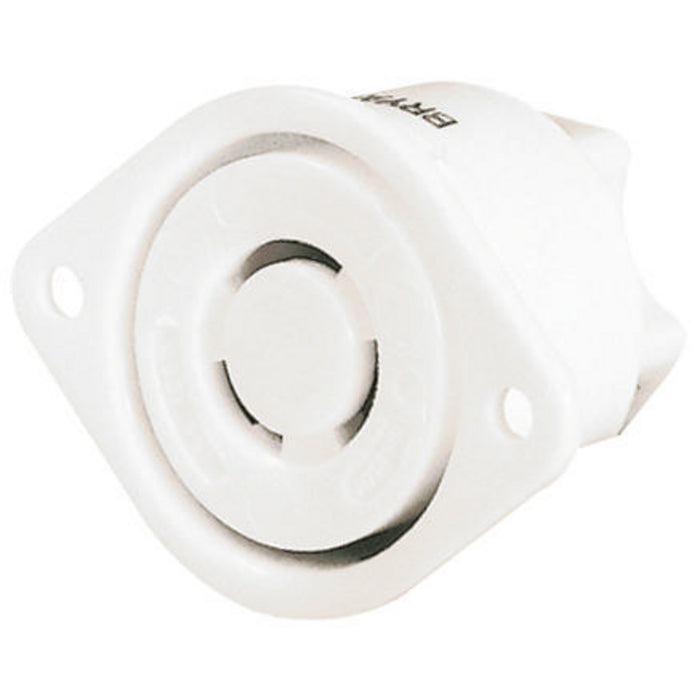

Bryant 7557ER Locking Flanged Receptacle 15A 125V/10A 250V Non-NEMA

Product Description

The BRYANT 7557ER is an industrial flanged receptacle with a 10A 250V rating. Features reinforced thermoplastic construction and single-piece, all-brass contacts. All terminals are back and side wired. Includes a brass mounting strap with a stainless steel grounding clip. Designed for extra heavy-duty industrial applications.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• All terminals are back and side wired

Product Highlights

Industrial grade flanged receptacle with robust construction and reliable connectivity for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7557ER

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 7557ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 10A Triple Gripper Flanged Receptacle Non-NEMA
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786405851
• Amperage Rating: 10 A
• Connectivity: Terminal Screws
• Current Amperage Description: 10 Amp
• Current Rating: 10 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: Non-NEMA
• Product Name: Bryant Locking Flanged Receptacle 3P3W 15A125/10A250V (7557ER)
• Brand: Bryant
• SKU: 7557ER
• Mfr. Part Number: 7557ER
• UPC Code: #781786405851
• Manufacturer Part Number: 7557ER
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Flanged Receptacle, 10A 250V, 3-Pole 3-Wire Non Grounding, Non-NEMA, Screw Terminal, Black
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Comments: Replacement Use Only
