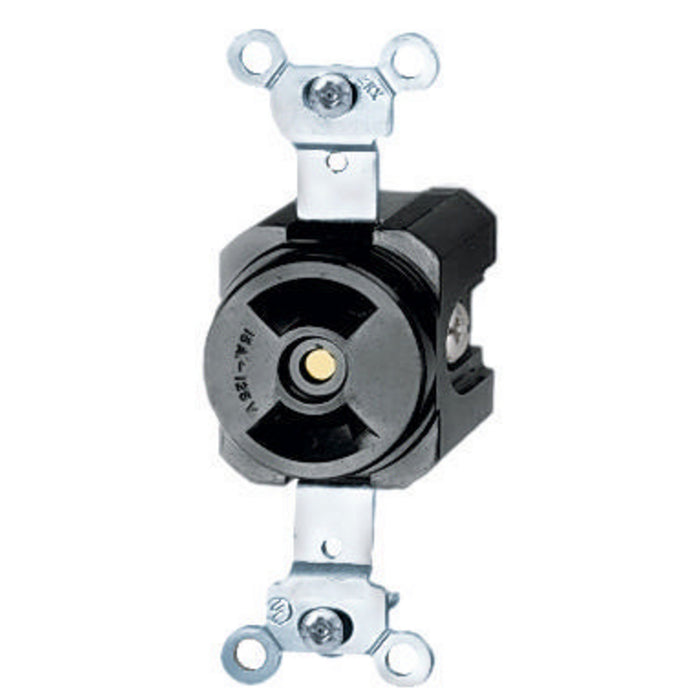

Bryant 7535 Locking Single Receptacle 15A 125V L1-15R

Product Description

The Bryant 7535 is a locking single receptacle with NEMA rating L1-15R. Rated for 15A and 125V, this industrial-grade receptacle features reinforced thermoplastic construction and single-piece, all-brass contacts. All terminals are back and side wired. Ideal for industrial applications requiring secure and reliable power connections.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• All terminals are back and side wired

Product Highlights

Industrial grade locking receptacle with robust construction for secure and reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7535
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 7535
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 15A Single Receptacle
• Material: Phenolic
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Single Locking
• UPC: 781786629165
• Height: 1 in
• Length: 3.28 in
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2
• Number Of Wires: 2
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L1-15R
• Ground: Non-Grounding
• Mounting: Flush
• Color: Black
• Voltage: 125 V
• MPN: 7535
• Brand: Bryant
• Country of Origin: United States
• Category: Plug/Receptacle
