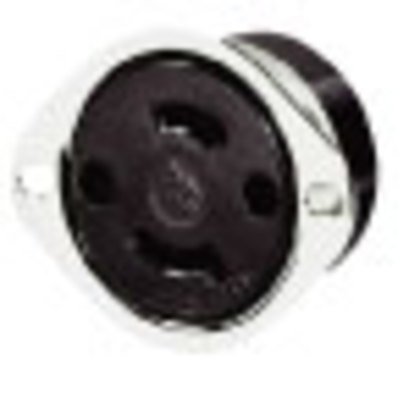

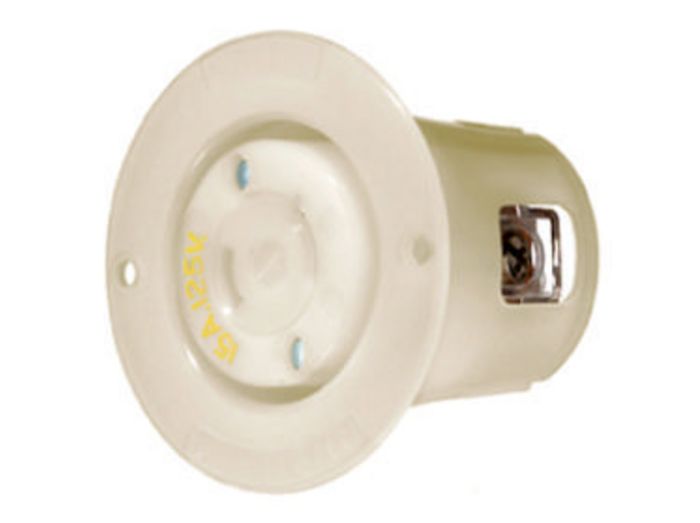

Bryant 7526 Locking Devices, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 2-Wire Non-Grounding, L1-15P, Screw Terminal

Product Description

The BRYANT 7526 is an industrial flanged receptacle designed for locking devices. Rated at 15A and 125V, this 2-pole, 2-wire non-grounding receptacle features a L1-15P configuration and screw terminals. It is constructed with reinforced thermoplastic and all brass contacts.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• All terminals are back and side wired

Product Highlights

Ideal for heavy-duty industrial applications, this flanged receptacle ensures a secure and reliable connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7526
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 7526
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 15A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786629127
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 2-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L1-15R
• Manufacturer Part Number: 7526
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• MPN: 7526
• UNSPSC: 39121406
• Country of Origin: US
• Wattage: 1,875 W
• Brand ID: BRYANT
• Description - Long: Locking Devices, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 2-Wire Non-Grounding, L1-15P, Screw Terminal, White
• Description - Short: Locking Devices, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 2-Wire Non-Grounding, L1-15P, Screw Terminal, White
• FV_Current/Amperage Rating Description: 15 Amp
• FV_Voltage Rating Description: 125V
• Product Name: 7526
