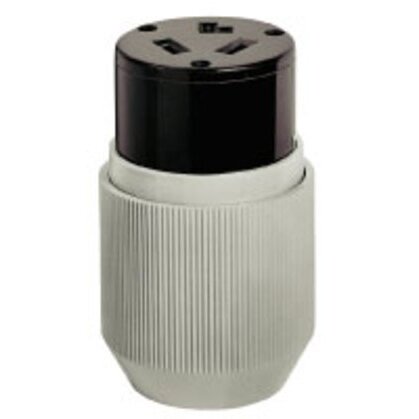

Bryant 7516NC Female Connector Body 50A 125/250V 10-50R

Product Description

The BRYANT 7516NC is a heavy-duty, industrial/commercial grade female connector body. Rated for 50A at 125/250V, this straight blade connector features a 3-pole, 3-wire non-grounding configuration and NEMA 10-50R rating. It is suitable for indoor dry environments unless protected by additional means.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 50A 125/250V
• 3-Pole 3-Wire Non Grounding

Product Highlights

Heavy-duty, straight blade female connector for industrial and commercial applications. Features a 3-pole, 3-wire non-grounding design.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7516NC
• Country of Origin: China

Technical Specifications

• Application: Heavy Duty
• Catalog Number: 7516NC
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Insulation: Insulated Body
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786732438
• Dimensions: 2.59 in x 5.19 in x 3.12 in
• Display Size: Standard Sized Product
• Height: 3.12 in
• Length: 2.59 in
• Weight: 1.15 lb
• Width: 5.19 in
• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 50 A
• Voltage Rating: 125/250 V
• Voltage Rating Description: 125/250 V
• Conductor Range: #6 AWG
• Number of Conductors: 3-Wire Non-Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Nema Rating: 10-50R
• current_rating: 50 A
• number_of_poles: 3
• number_of_wires: 3
• voltage: 125 VAC, 250 VAC
• body_type: Straight
• connection_type: Connector
• nema_configuration: 10-50R
• watertight: No
• isolated_ground: No
• net_weight: 0.73 lb
• gross_weight: 1.15 lbs
• Country of Origin: China
• Brand: Bryant Electric
• Cord Diameter: 0.425 to 1.32 in
• Grade: Commercial/Industrial
• Manufacturer Name: Hubbell
• Terminal Type: Pressure Screw
• Family Series: Bryant Electric Plugs & Receptacles
• Manufacturer Part Number: 7516NC
• Manufacturer: Bryant Electric
