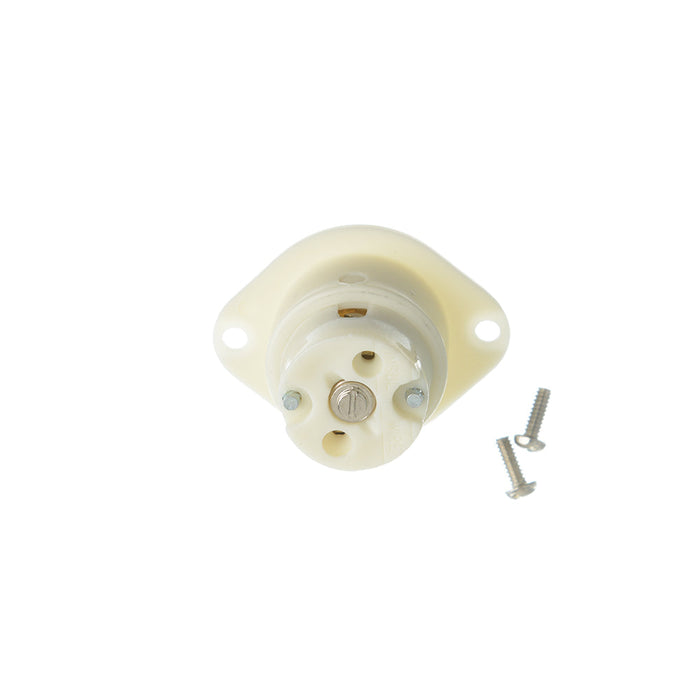

Bryant 7487ER Locking Receptacle 15A 125/250V ML-3R

Product Description

The Bryant 7487ER locking receptacle is an industry standard for heavy-duty electrical devices. Designed for reliable and safe electrical connections, this receptacle features individual wire pockets and clamp-type terminals. Constructed from nylon, it includes a strip gauge for accurate wiring. It is suitable for extra heavy-duty industrial applications.

• Individual wire pockets, clamp-type terminals
• Nylon construction
• Strip gauge for accurate wiring

Product Highlights

The Bryant locking receptacle is a durable and reliable choice for industrial applications, ensuring secure and safe electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7487ER

Technical Specifications

• Brand: Bryant Electric
• Manufacturer Part Number: 7487ER
• Color: White
• Material: Nylon
• Amperage: 15 Amps
• Connector Type: Plug In
• Specification Met: UL
• Product Series: MIDGET
• Family Series: Bryant Electric Plugs & Receptacles, Midget Series
• Description: Locking Devices, Bryant Midget Locking, Industrial, Receptacle, 15A 125/250V, 3-Pole 3-Wire Non Grounding, ML-3R, Screw Terminal, Black White
• Current Rating: 15 A
• Number of Poles: 3
• Number of Wires: 3
• Body Type: Straight
• Connection Type: Flanged Outlet
• NEMA Configuration: ML-3P
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Catalog ID: 7487ER
• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 7487ER
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Midget Flanged Receptacle
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Non-Grounding
• Type: Flanged Receptacle
• UPC: 781786669505
• Display Size: Midget Locking
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Phase: Single Phase
• Voltage Rating: 125/250 V
• Voltage Rating Description: 125/250V
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #12 AWG
• Nema Rating: ML-3R
