Bryant 7486MB Midget Locking Industrial Flanged Inlet 15A 125/250V ML-3P

Product Description

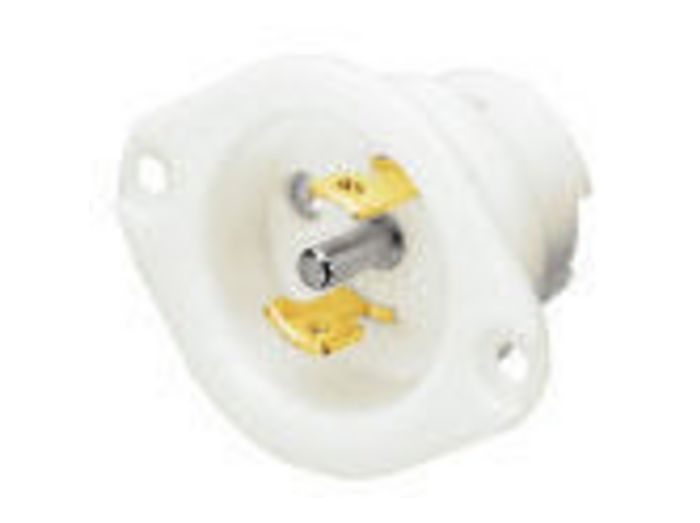

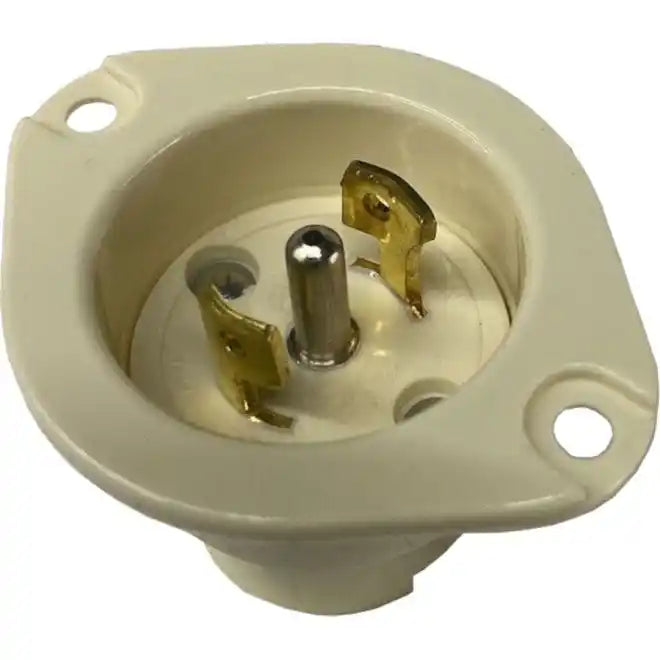

The BRYANT 7486MB is a midget locking industrial flanged inlet. Rated at 15A and 125/250V, this 3-pole, 3-wire non-grounding inlet features screw terminals and is designed for extra heavy-duty industrial applications. It is suitable for indoor dry environments unless protected by additional means.

• Industrial flanged inlet
• Rated for 15A 125/250V
• 3-Pole 3-Wire Non Grounding

Product Highlights

Midget locking flanged inlet designed for industrial applications, featuring a durable composite material and screw terminals.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7486MB

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 7486MB
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 15A Midget Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Non-Grounding
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786669451
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Dielectric Strength: Withstands 3000V Minimum in
• Voltage Rating: 125/250 V
• Voltage Rating Description: 125/250V
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #12 AWG
• Nema Rating: ML-3P
• Manufacturer: Bryant Electric
• Product Series: MIDGET
• Family Series: Bryant Electric Plugs & Receptacles, Midget Series
• Body Type: Straight
• Connection Type: Flanged Inlet
• NEMA Configuration: ML-3P
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Features: Locking Plug, Heavy Duty
• Resistance Properties: Impact Resistant
• Output Voltage: 125 V
• Rating - Amps: 15A
• Rating - Volts: 125/250V
• Ground: Non-Grounding
• NEMA: ML-3P
• Rated Current: 15A
• Power Phase: 1-Phase
• Number of Pins/Wires: 3
• Rated Voltage: 250V
• Locking Blade: Yes
• UOM: ea
