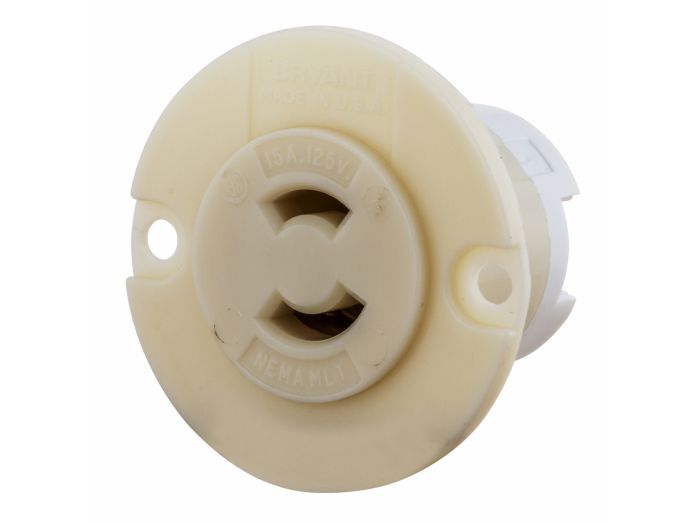

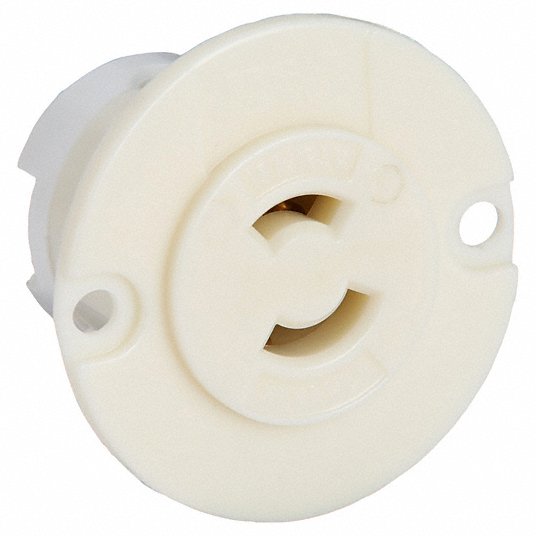

Bryant 7468N Flanged Receptacle Locking Devices 15A 125V ML-1R

Product Description

The Bryant 7468N is an industry-standard heavy-duty flanged receptacle designed for reliable and safe electrical connections. This midget locking receptacle is suitable for industrial applications. It supports a single electrical plug and features terminations with screws that tighten down on conductors to secure them.

• Individual wire pockets, clamp-type terminals
• Impact/chemical-resistant nylon construction
• Color-coded Terminal screws for easy identification

Product Highlights

Heavy-duty flanged receptacle with clamp-type terminals and chemical-resistant nylon construction for secure electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7468N
• Country of Origin: Mexico

Technical Specifications

• Brand: BRYANT
• MPN: 7468N
• Voltage: 125 Volts
• Amperage: 15 Amps
• Connector Type: Plug In
• Specification Met: UL
• Country of Origin: Mexico
• Application: Extra Heavy Duty Industrial Specification Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Midget Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Non-Grounding
• Type: Flanged Receptacle
• UPC: 781786638525
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 2-Wire
• Wire Size: #18 AWG to #12 AWG
• Nema Rating: ML-1R
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Flange Material: Nylon
• Flange Shape: Round
• Flange Type: Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.425 in
• For Minimum Cable Diameter: 0.22 in
• Grounding: Non-Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Composite
• Hub Type: Dead End
• IP Rating: Not Rated
• Maximum Wire Size: 12 AWG
• Midget Locking: Yes
• Minimum Wire Size: 18 AWG
• Mount Type: Flush
• NEMA Configuration: ML1-15
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: ML1-15R
• Number of Outlets: 1
• Resistance Properties: Corrosion Resistant
• Shrouded: Yes
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
• Product Series: MIDGET
• Family Series: Bryant Electric Plugs & Receptacles, Midget Series
• Description: Locking Devices, Bryant Midget Locking, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 2-Wire Non Grounding, ML-1R, Screw Terminal, Black
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
