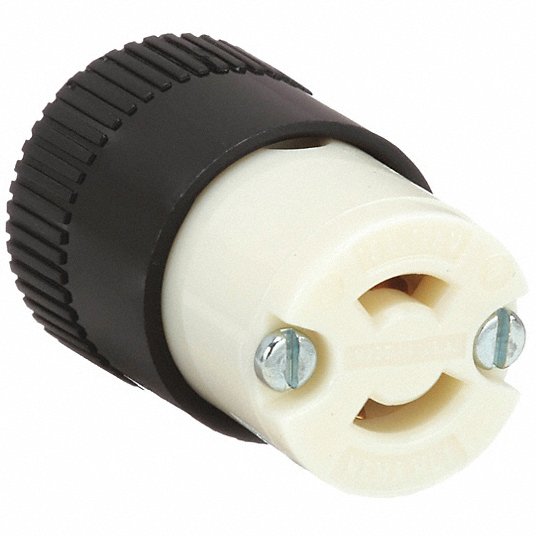

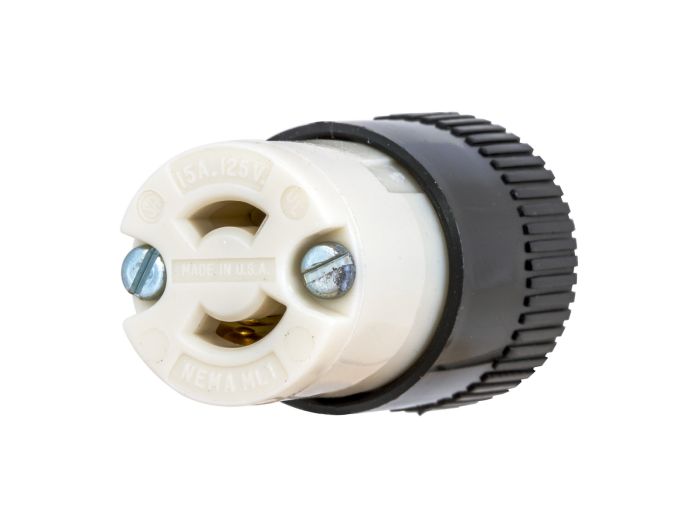

Bryant 7464N Midget Locking Industrial Female Connector Body 15A 125V ML-1R

Product Description

The BRYANT 7464N is a midget locking industrial female connector body. This connector is designed for use in applications where space is limited. It features an abuse-resistant nylon housing and screw terminals for secure connections. Ideal for inline connections to supply equipment with power.

• Smaller body size for use in tighter fit applications
• Abuse resistant nylon housing
• Standard Product

Product Highlights

Midget locking connector with nylon housing and screw terminals, suitable for industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7464N
• Country of Origin: US

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 7464N
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 15A Midget Female Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Non-Grounding
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Plugs
• UPC: 781786638501
• Dimensions: 1.25 in x 1.25 in x 2.15 in
• Display Size: Midget NEMA Locking
• Height: 2.15 in
• Length: 1.25 in
• Width: 1.25 in
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Conductor Range: #14 AWG
• Number of Conductors: 2-Pole Non-Grounding
• Number Of Poles: 2-Pole
• Number Of Wires: 2-Wire
• Wire Size: #18 AWG to #12 AWG
• Nema Rating: ML-1R
• Manufacturer: Bryant Electric
• Product Series: MIDGET
• Family Series: Bryant Electric Plugs & Receptacles, Midget Series
• Description: Locking Devices, Bryant Midget Locking, Industrial, Female Connector Body, 15A 125V, 2-Pole 2-Wire Non-Grounding, ML-1R, Screw Terminal, Black White
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: ML-1R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0.06 lbs
• Gross Weight: 0.05 lbs
• Model: 7464N
• California Prop 65 Warning: N
• Country of Origin: US
• Weight: 0.7000
• Depth: 2.700
• Voltage: N/A
• Features: Midget Locking Connector, Connection Orientation Straight, Curren
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Cable Length: N/A
• Cap Type: No Cap or Cover
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Maximum Cable Diameter: 0.425 in
• For Minimum Cable Diameter: 0.22 in
• Grounding: Non-Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 12 AWG
• Midget Locking: Yes
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 18 AWG
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: ML1-15R
• Overall Length: 1.25 in
• Phase: Single
• Power Indicating Light: No
• Resistance Properties: Shatter and Crack Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Housing Color: Black; White
