Bryant 7410 Locking Devices Flush Receptacle 20A 3-Phase Wye 120/208V AC

Product Description

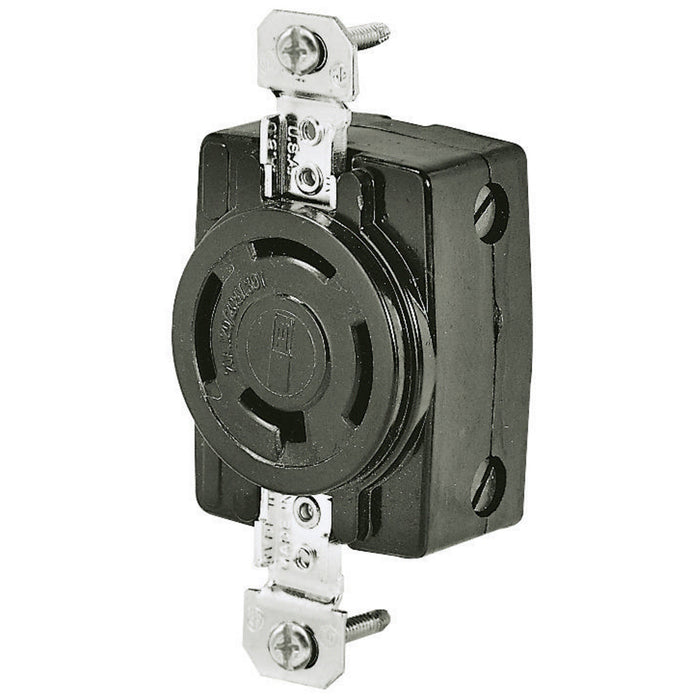

The BRYANT 7410 is an industrial-grade flush receptacle designed for reliable power supply. Rated at 20A 3-Phase Wye 120/208V AC, this 4-pole, 4-wire non-grounding receptacle features screw terminals for secure connectivity. Ideal for heavy-duty industrial applications, it ensures safe and durable electrical connections.

• Flush Receptacle
• 20A 3-Phase Wye 120/208V AC
• Screw Terminal

Product Highlights

Durable and easy-to-install, this receptacle conforms to electrical standards and safety regulations.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7410

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 7410
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 20A Single Receptacle-For Replacement Use
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786628311
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: Non-NEMA
• Brand: Bryant Electric
• Model: 7410
• Mounting Style: Flush
