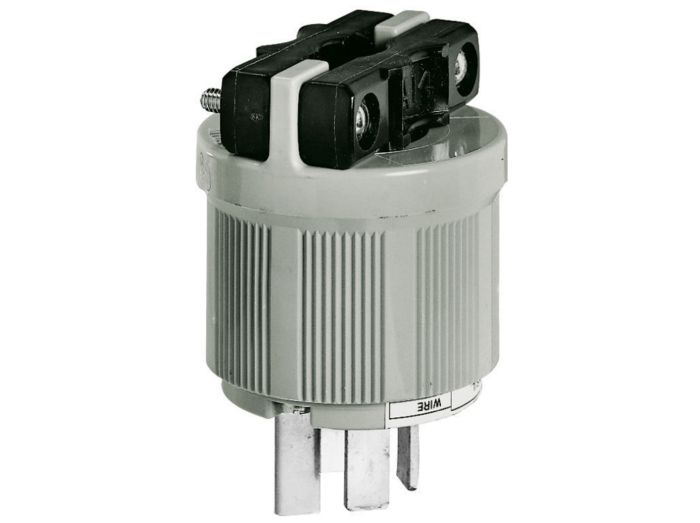

Bryant 7251N Male Plug 20A 3-Phase 120/208V AC 18-20P

Product Description

The BRYANT 7251N is a heavy-duty, industrial/commercial grade male plug. This straight blade device is rated for 20A 3-Phase 120/208V AC, featuring a 4-pole, 4-wire non-grounding configuration and NEMA 18-20P. It is suitable for heavy-duty applications and designed for indoor dry environments unless protected by additional means.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 20A 3-Phase 120/208V AC
• 4-Pole 4-Wire Non-Grounding

Product Highlights

Heavy-duty, industrial/commercial grade straight blade male plug with 20A 3-Phase 120/208V AC, 4-pole, 4-wire non-grounding configuration.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7251N
• Country of Origin: US

Technical Specifications

• Application: Heavy Duty
• Catalog Number: 7251N
• Color: Gray
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: Standard
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Heavy Duty
• Type: Plug
• UPC: 781786627932
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: Three Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase WYE 120/208 VAC
• Wattage: 4160
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 18-20P
• Cord Type: All Portable
• Manufacturer Part Number: 7251N
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 120 VAC, 208 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Brand: Bryant
• Output Voltage: 208 V
• Input Voltage: 120 V
• Category: Plug/Receptacle
