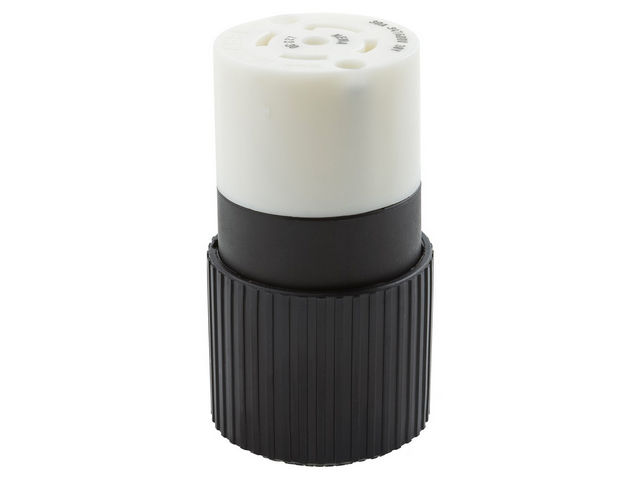

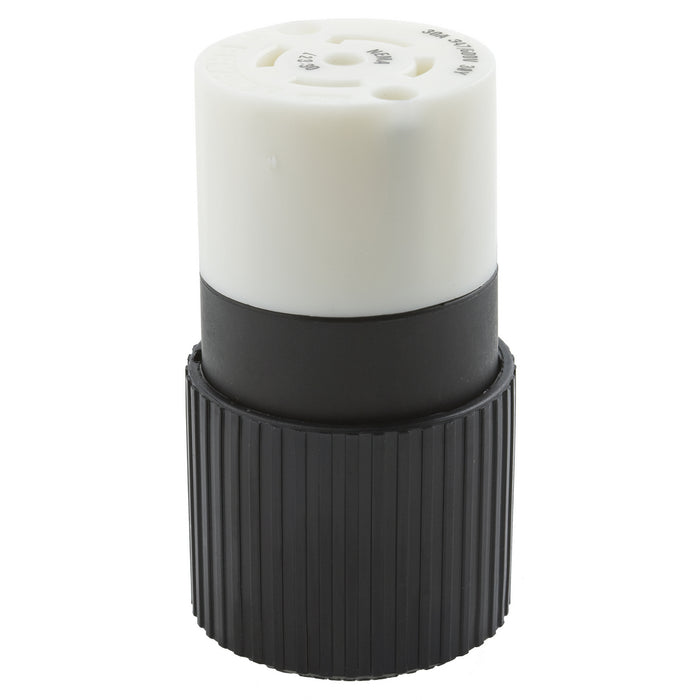

Bryant 72330NC Industrial Female Connector Body 30A 3-Phase Wye 347/600V AC L23-30R

Product Description

The BRYANT 72330NC is an industrial female connector body designed for heavy-duty applications. This connector supports 30A, 3-Phase Wye 347/600V AC, and features a 4-pole, 5-wire grounding configuration with an L23-30R NEMA rating. It utilizes screw terminals for connectivity and is constructed from impact/chemical resistant nylon.

• Features alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial female connector body, 30A, 3-Phase Wye 347/600V AC, 4-Pole, 5-Wire Grounding, L23-30R NEMA rating, screw terminals, and nylon construction.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72330NC
• Country of Origin: Puerto Rico

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 72330NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 781786702998
• Dimensions: 2.13 in x 2.13 in x 3.90 in
• Height: 3.9 in
• Length: 2.13 in
• Width: 2.13 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Voltage Rating: 3 Phase Y 347/600 VAC
• Voltage Rating Description: 3 Phase Y 347/600 VAC
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 5-Wire Grounding
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L23-30R
• Carton Quantity: 10
• Display Size: Standard Sized Product
• Cord Diameter: 0.465-1.150 in
• Size: 2.13 in x 2.13 in x 3.90 in
• Description - Invoice: LKG CONN, 30A 347/600V, L23-30R,B/W
• Harmonization Code: 8536699999
• MSDS Flag: No
• Base Unit of Measure: EA
• Carton - Gross Weight per Pack: 4.3 lb.
• Carton - Pack Description: Carton
• Carton - Total Units: 10
• Lowest Level UOM: Each
• Certifications: EU RoHS Indicator: Yes
