HUBBELL Bryant 72320NP Locking Plug 20A 3-Phase Wye 347/600V AC L23-20P
HUBBELL Bryant 72320NP Locking Plug 20A 3-Phase Wye 347/600V AC L23-20P

Bryant 72320NP Locking Plug 20A 3-Phase Wye 347/600V AC L23-20P

HUBBELL
Brand: HUBBELL
SKU: 72320NP
Availability: In Stock

Ships same day if ordered by 12 pm
$74.15
$74.15
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

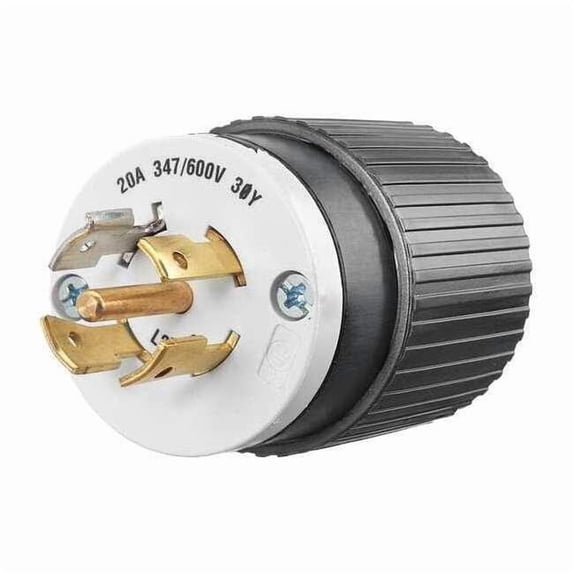

The BRYANT 72320NP is an industrial male nylon locking plug, rated at 20A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, L23-20P with screw terminals. It is suitable for extra heavy-duty industrial applications and provides secure cable-to-plug connections for common industrial and commercial power applications.

  • Hand grip features wide-rib, non-slip design
  • Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
  • Captive, combination Slot/Phillips assembly screws

Product Highlights

This Bryant locking plug is ideal for plant floors, manufacturing facilities, and mills where vibration or equipment movement could disrupt straight-blade connections.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 72320NP
  • Country of Origin: USA
Technical Specifications
Application
Extra Heavy Duty Industrial
Catalog Number
72320NP
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Item Type
20A Triple Gripper Nylon Plug
Material
Composite
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Bryant
Style
Internal Cord Clamp
Type
Plugs
UPC
781786702721
Amperage Rating
20 A
Connectivity
Screw Terminals
Current Amperage Description
20 Amp
Current Rating
20 A
Phase
Three Phase
Voltage Rating
347/600V AC
Voltage Rating Description
3 Phase Y 347/600 VAC
Number Of Poles
4-Pole
Number Of Wires
5-Wire
Wire Size
#18 AWG to #8 AWG
Nema Rating
L23-20P
Cord Type
All Listed Portables
Brand
BRYANT
Body Length
2.13 in
Compatible Series
Twist Lock
Connection Orientation
Straight
Face Diameter
1.89 in
For Environment
Dry
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.465 in
Grounding
Grounded
Horsepower Rating
1 hp
Housing Material
Nylon
IP Rating
IP20
Maximum Wire Size
8 AWG
Midget Locking
No
Minimum Wire Size
18 AWG
NEMA Configuration
L23-20
NEMA Plug Configuration
L23-20P
Number of Blades
5
Outside Diameter
2.13 in
Overall Length
2.13 in
Power Indicating Light
No
Resistance Properties
Chemical Resistant; Impact Resistant
Shrouded
No
Standards
NEMA WD-1; NEMA WD-5; UL 498
Wire Connection Type
Screw Terminals
Wiring Style
Standard
UNSPSC
39121402
Depth
2.200
Amps
20 Amps
Has nrtl listing certification
N
Pack quantity
1
