Bryant 72320MB Flanged Inlet-N L23-20P

Product Description

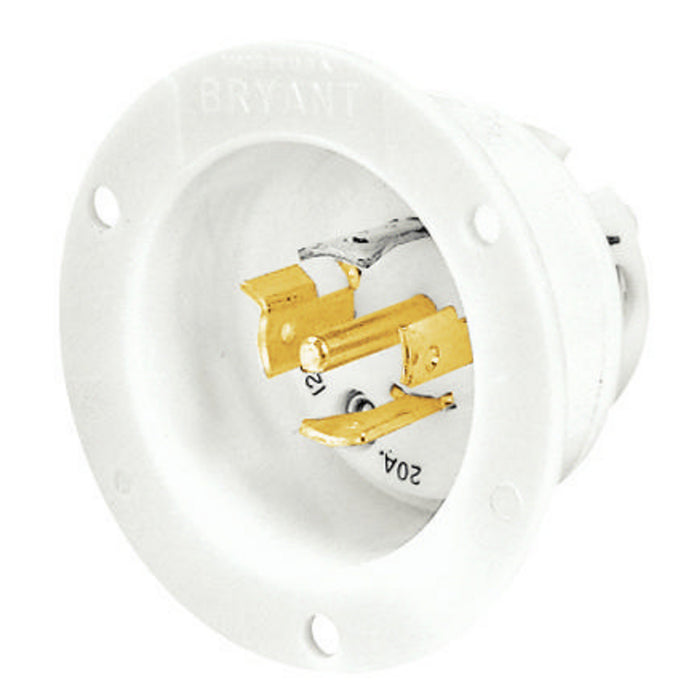

The BRYANT 72320MB flanged inlet is an industrial locking device with a L23-20P NEMA rating. This 20A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire grounding flanged inlet features screw terminals and impact resistant thermoplastic construction.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

The BRYANT 72320MB flanged inlet is suitable for extra heavy duty industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72320MB

Technical Specifications

• Catalog Number: 72320MB
• Application: Extra Heavy Duty Industrial
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786702660
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Dielectric Strength: Withstands 3000V Minimum
• Voltage Rating: 3 Phase Y 347/600 VAC
• Voltage Rating Description: 3 Phase Y 347/600V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L23-20P
• Manufacturer Part Number: 72320MB
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 347 VAC, 600 VAC
• Phase: 3Y
• Body Type: Straight
• Connection Type: Flanged Inlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Net Weight: 0.21 lbs
