HUBBELL Bryant 72230NP Locking Plug 30A 277/480V L22-30P
HUBBELL Bryant 72230NP Locking Plug 30A 277/480V L22-30P
HUBBELL Bryant 72230NP Locking Plug 30A 277/480V L22-30P
HUBBELL Bryant 72230NP Locking Plug 30A 277/480V L22-30P

Bryant 72230NP Locking Plug 30A 277/480V L22-30P

HUBBELL
Brand: HUBBELL
SKU: 72230NP
Availability: In Stock

Ships same day if ordered by 12 pm
$81.22
$81.22
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

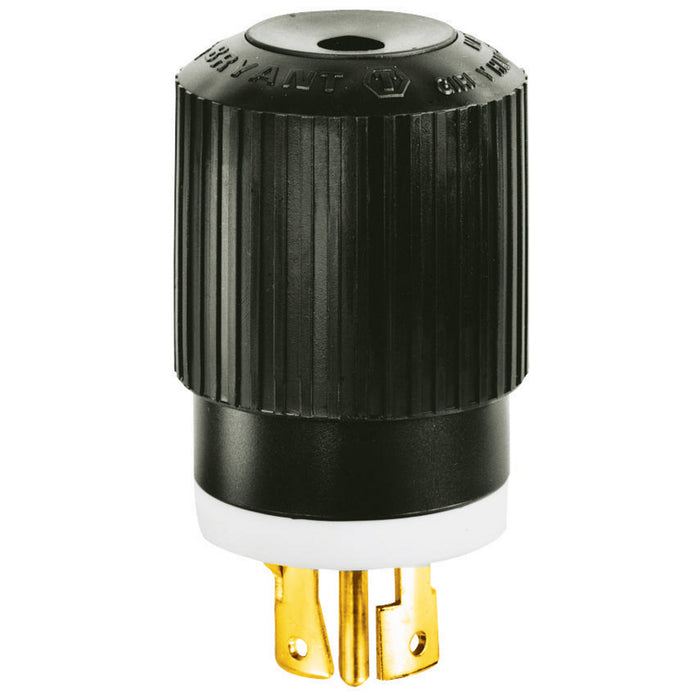

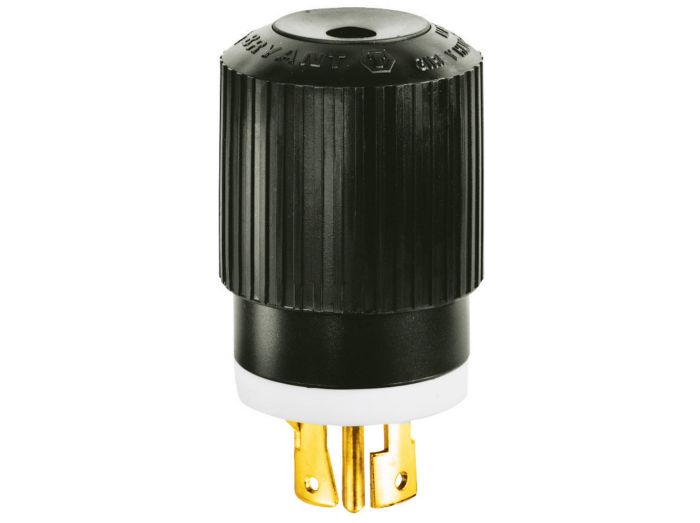

The BRYANT 72230NP is a locking plug designed for industrial applications. This male plug supports 3-Phase Wye 277/480V AC, and features a 4-Pole 5-Wire grounding configuration with screw terminals. It has a wide-rib, non-slip hand grip and a configuration-specific plug face to prevent contamination.

  • Features a wide-rib, non-slip hand grip
  • Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
  • Internal self-centering Triple Gripper cord grip with radius teeth design provides secure cord retention

Product Highlights

Industrial grade locking plug with secure cord retention and contaminant protection. Ideal for heavy-duty applications requiring a reliable and safe electrical connection.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 72230NP
  • Country of Origin: United States
Technical Specifications
Product Name
Bryant Locking Plug 30A 277/480V L22-30P Black And White (72230NP)
Brand
Bryant
SKU
72230NP
Mfr. Part Number
72230NP
Voltage
277 or 480
UPC Code
#781786702226
Application
Extra Heavy Duty Industrial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Item Type
30A Triple Gripper Nylon Plug
Material
Iron Alloy
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Bryant
Style
Internal Cord Clamp
Type
Plugs
UPC
781786702226
Height
2.86 in
Length
2.13 in
Width
2.13 in
Amperage Rating
30 A
Connectivity
Screw Terminals
Current Amperage Description
30 Amp
Current Rating
30 A
Phase
Three Phase
Voltage Rating
3 Phase Y 277/480 VAC
Voltage Rating Description
3 Phase Y 277/480 VAC
Number Of Poles
4-Pole
Number Of Wires
5-Wire
Wire Size
#18 AWG to #8 AWG
Nema Rating
L22-30P
Standards - RoHS Compliance Status
CM
Cord Type
All Listed Portables
Plug Type
L22-30
Input Voltage
277/480V
Maximum Input Current
30A
Number of Outlets
1
Recommended Environment
Indoor
Features
Locking Plug
Output Voltage
277/480V
Body Type
Straight
Connection Type
Plug
NEMA Configuration
L22-30P
Watertight
No
Isolated Ground
No
Approvals
CSA, UL
