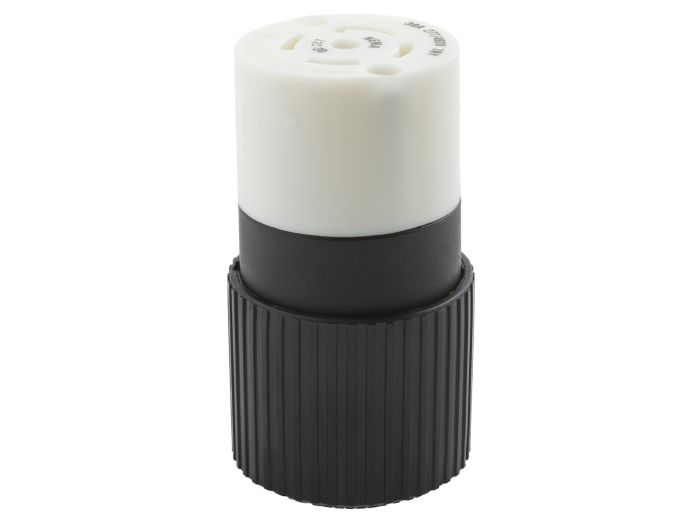

Bryant 72230NC Connector 30A 3-Phase Wye 277/480V AC L22-30R

Product Description

The BRYANT 72230NC is an industrial female connector body. Rated at 30A 3-Phase Wye 277/480V AC, this 4-Pole 5-Wire grounding connector features a L22-30R NEMA configuration and screw terminals. Its toughened nylon construction is impact and chemical resistant. Suitable for heavy-duty industrial applications.

• Face and body feature alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial grade connector with alignment keys and chemical resistant nylon construction.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72230NC

Technical Specifications

• Manufacturer Part Number: 72230NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 4
• Number of Wires: 5
• Voltage: 277 VAC, 480 VAC
• Phase: 3Y
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L22-30R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Application: Heavy Duty Industrial
• Catalog Number: 72230NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 C with impact.
• Type: Connector Body
• UPC: 781786702196
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Voltage Rating: 3 Phase Y 277/480 VAC
• Voltage Rating Description: 3 Phase Y 277/480 VAC
• Conductor Range: #12 AWG to #8 AWG
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L22-30R
