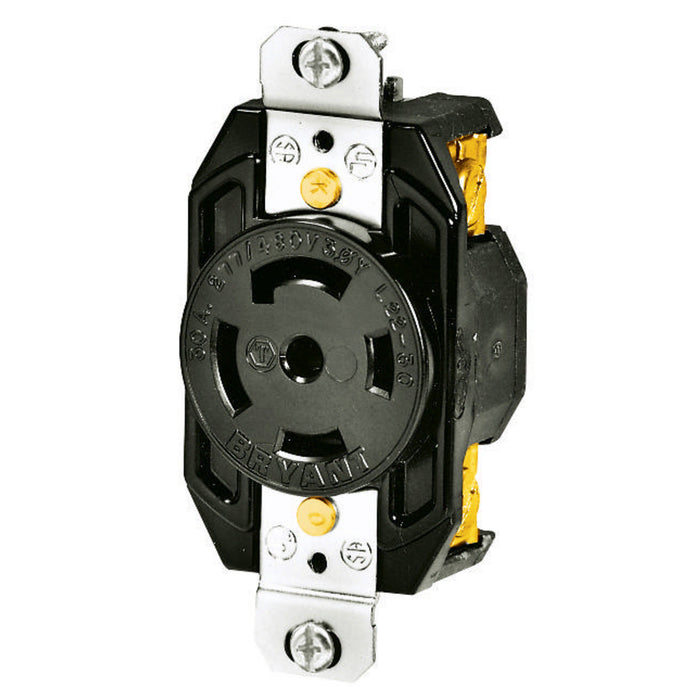

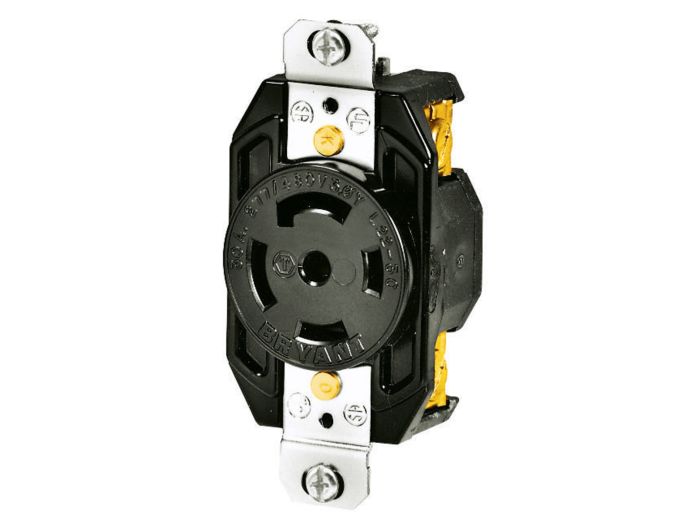

Bryant 72230FR Flush Receptacle 30A 3-Phase Wye 277/480V AC L22-30R

Product Description

The BRYANT 72230FR is an industrial-grade flush receptacle, designed for heavy-duty applications. Rated at 30A, it supports 3-Phase Wye 277/480V AC power systems. This 4-Pole, 5-Wire grounding receptacle features screw terminals for secure connections. Ideal for industrial settings requiring reliable power distribution.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring terminals.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72230FR
• Country of Origin: Puerto Rico

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 72230FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786702134
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 277/480 VAC
• Voltage Rating Description: 3 Phase Y 277/480V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L22-30R
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 72230FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 277 VAC, 480 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Receptacle Type: Receptacle
• Gender: Female
• Flange Style: No Flange
• Resistance Features: Impact-Resistant
• Grade: Industrial
• Grounding Style: Grounding
• Standards: UL Listed; CSA Certified
• Maximum Cord Diameter: 29.20 mm
• UNSPSC Code: 39121400
• Country of Origin: Puerto Rico
