Bryant 72220FR Flush Receptacle 20A 3-Phase Wye 277/480V AC L22-20R

Product Description

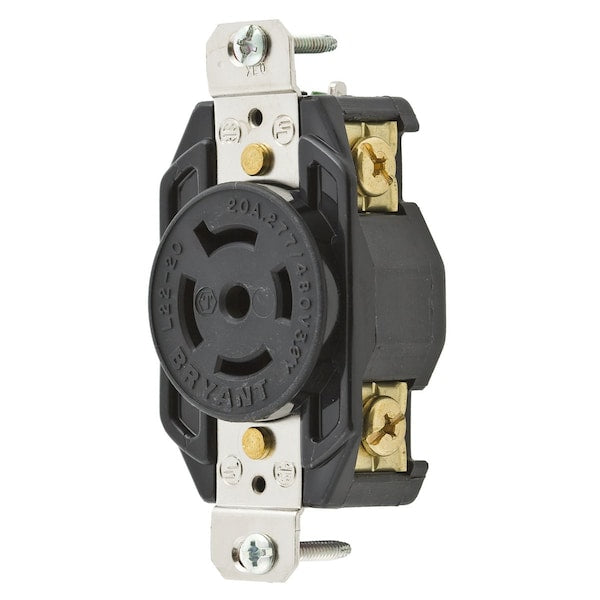

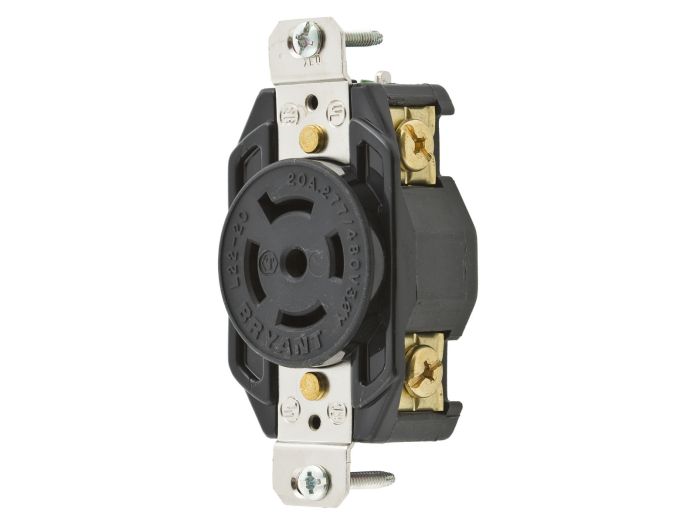

The BRYANT 72220FR is an industrial-grade flush nylon receptacle. Rated for 20A, 3-Phase Wye 277/480V AC, it features a 4-Pole 5-Wire grounding configuration and L22-20R NEMA rating. Designed with screw terminals and combination back and side wiring, it accepts #14 to #8 AWG conductors. Suitable for extra heavy-duty industrial applications.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72220FR
• Country of Origin: Puerto Rico

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 72220FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786701830
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 277/480V AC
• Voltage Rating Description: 3 Phase Y 277/480V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L22-20R
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 72220FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 277 VAC, 480 VAC
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L22-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Item: Locking Receptacle
• NEMA Receptacle Configuration: L22-20R
• Wire Connection Type: Screw Terminals
• Grounding: Grounded
• Housing Color: Black
• Mount Type: Flush
• Cover Type: No Cover
• Standards: Certified for current interrupting at full rated current, FED SPEC UL/CSA
• Resistance Properties: Corrosion Resistant
• Flange Type: Non-Flanged
• Brand: Bryant
• Model: 72220-FR
• Condition: New Open box
