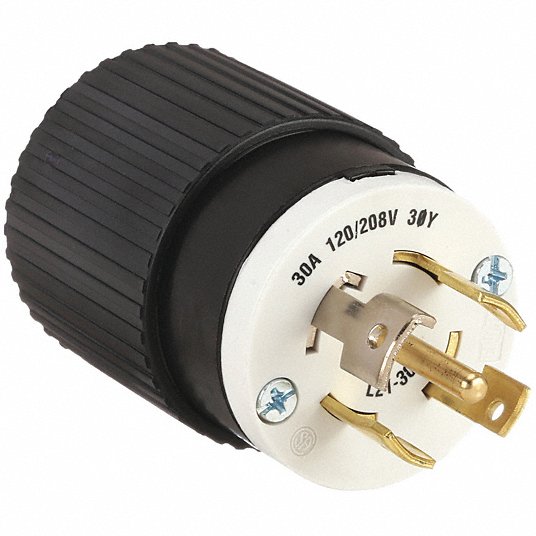

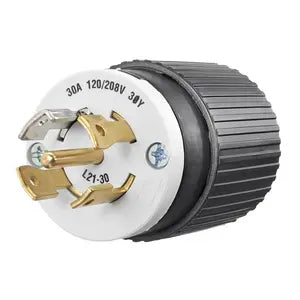

Bryant 72130NP Locking Devices Industrial Male Plug 30A 3-Phase Wye 120/208V AC L21-30P

Product Description

The BRYANT 72130NP is an industrial male locking plug designed for secure cable-to-plug connections in industrial and commercial power applications. It is rated for 30A, 3-Phase Wye 120/208V AC, and features a 4-pole, 5-wire grounding configuration. Typically used in environments where vibration or movement could disrupt connections.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

This locking plug is chemical and impact-resistant, incorporating a one-piece grounding system. Ideal for plant floors and manufacturing facilities.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72130NP
• Country of Origin: USA

Technical Specifications

• Catalog Number: 72130NP
• Application: Extra Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material: Composite
• Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786701526
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 120/208V AC
• Voltage Rating Description: 3 Phase Y 120/208 VAC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L21-30P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Face Diameter: 1.89 in
• For Environment: Dry
• For Maximum Cable Diameter: 0.95 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Material: Composite
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L21-30
• NEMA Plug Configuration: L21-30P
• Number of Blades: 5
• Outside Diameter: 2.13 in
• Overall Length: 2.13 in
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Wiring Method: Back Wired
• Height: 2.86 in
• Length: 2.13 in
• Width: 2.13 in
