Bryant 72130MB Flanged Inlet-N L21-30P

Product Description

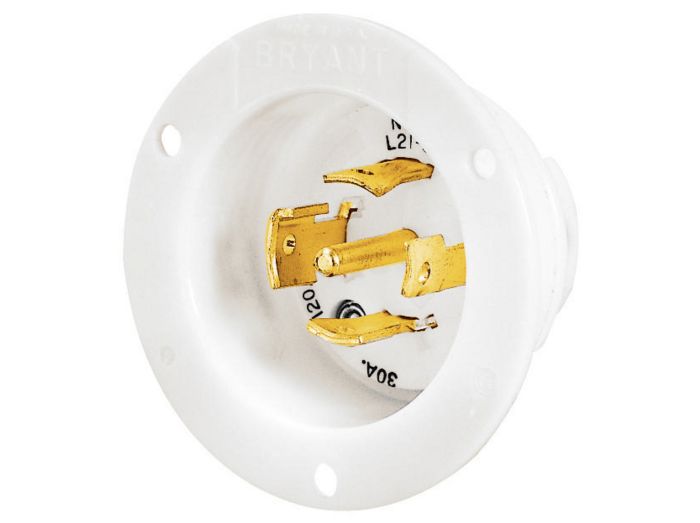

The BRYANT 72130MB flanged inlet is an industrial locking device with a L21-30P NEMA rating. This 30A flanged inlet supports a 3-Phase Wye 120/208V AC connection with a 4-pole, 5-wire grounding configuration and screw terminals. Constructed from impact-resistant thermoplastic.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

The BRYANT 72130MB flanged inlet is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72130MB
• Country of Origin: United States

Technical Specifications

• Catalog Number: 72130MB
• Application: Extra Heavy Duty Industrial
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Flanged Inlet
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Locking Flanged Inlet
• UPC: 781786701465
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Dielectric Strength: Withstands 3500V
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L21-30P
• Manufacturer Part Number: 72130MB
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 120 VAC, 208 VAC
• Phase: 3Y
• Body Type: Straight
• Connection Type: Flanged Inlet
• Watertight: No
• Isolated Ground: No
• Color: White
• Approvals: CSA, UL
• Rating - Amps: 30A
• Rating - Volts: 120/208V 3 PhaseY
• Number of Poles: 4P
• Ground: Grounding
• NEMA: L21-30P
• Brand: BRYANT
• Country of Origin: United States
• Condition: New
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
