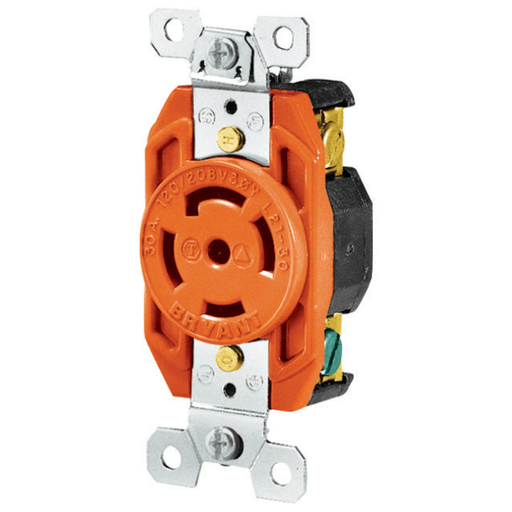

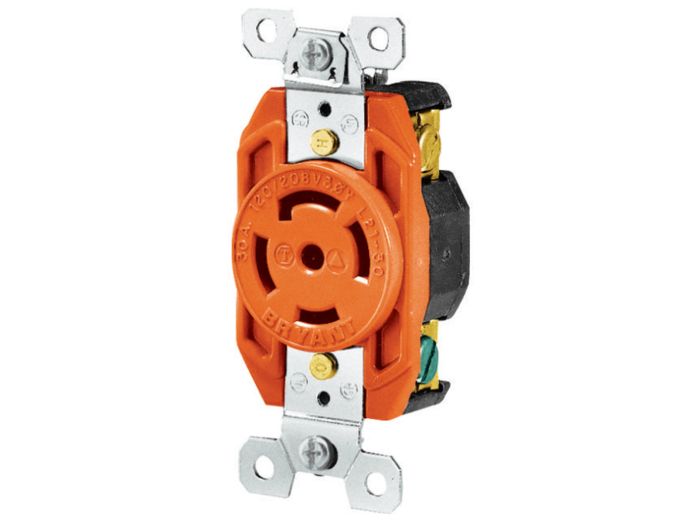

Bryant 72130IG Locking Receptacle 30A 120/208V L21-30R

Product Description

The BRYANT 72130IG is a locking receptacle designed for industrial use. This isolated ground, flush receptacle supports 30A, 3-Phase Wye 120/208V AC, and features a 4-Pole 5-Wire Grounding configuration with L21-30R and screw terminals. Ideal for environments needing a robust grounding solution.

• Limits electrical noise by providing two grounding paths.
• Features a durable nylon deep face design.
• Equipped with triple-wipe brass line contacts.

Product Highlights

Industrial grade locking receptacle with isolated ground and robust construction for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72130IG
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 72130IG
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 4
• Number of Wires: 5
• Voltage: 120 VAC, 208 VAC
• Phase: 3Y
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L21-30R
• Watertight: No
• Isolated Ground: Yes
• Approvals: CSA, UL
• Amperage Rating: 30 A
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Special Features: Isolated Ground
• Voltage Rating: 120/208 V
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Connectivity: Terminal Screws
• Nema Rating: L21-30R
• Number Of Wires: 5-Wire
• Series: Locking
• Application: Extra Heavy Duty Industrial Specification Grade
• Type: Single Receptacle
• Wire Size: #14 AWG to #8 AWG
• Display Size: Standard Sized Product
• Number Of Poles: 4-Pole
• Style: Isolated Ground
• Description - Invoice: LKG RCPT, IG, 30A 120/208V, L21-30R,OR
• Material - Mounting Hardware: Screw Mounting
• Material: Composite
• Base Unit of Measure: EA
• Lowest Level UOM: Each
• Certifications: EU RoHS Indicator
