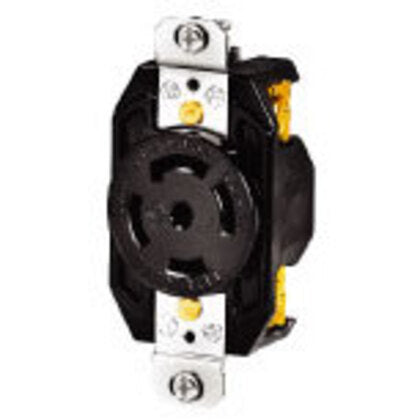

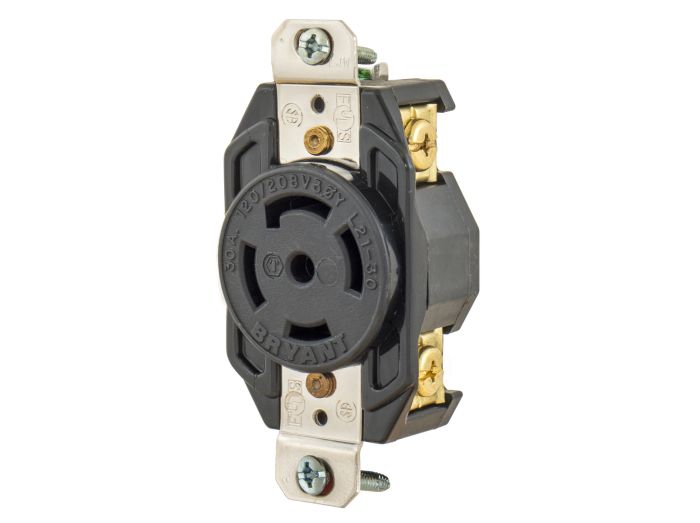

Bryant 72130FR Flush Receptacle 30A 3-Phase Wye 120/208V AC L21-30R

Product Description

The BRYANT 72130FR is an industrial-grade flush receptacle designed for heavy-duty applications. This receptacle supports 30A, 3-Phase Wye 120/208V AC, and features a 4-Pole 5-Wire grounding configuration with L21-30R NEMA rating. It utilizes screw terminals for secure connectivity and is suitable for indoor dry environments unless protected by additional means.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring for reliable electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72130FR

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 72130FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786701434
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L21-30R
• Standards - RoHS Compliance Status: CM
• Manufacturer: Bryant Electric
• Item model number: 72130FR
• Item Package Quantity: 1
• Included Components: Electrical Receptacle
• Batteries Required?: No
• Volts AC: 120, 208
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
