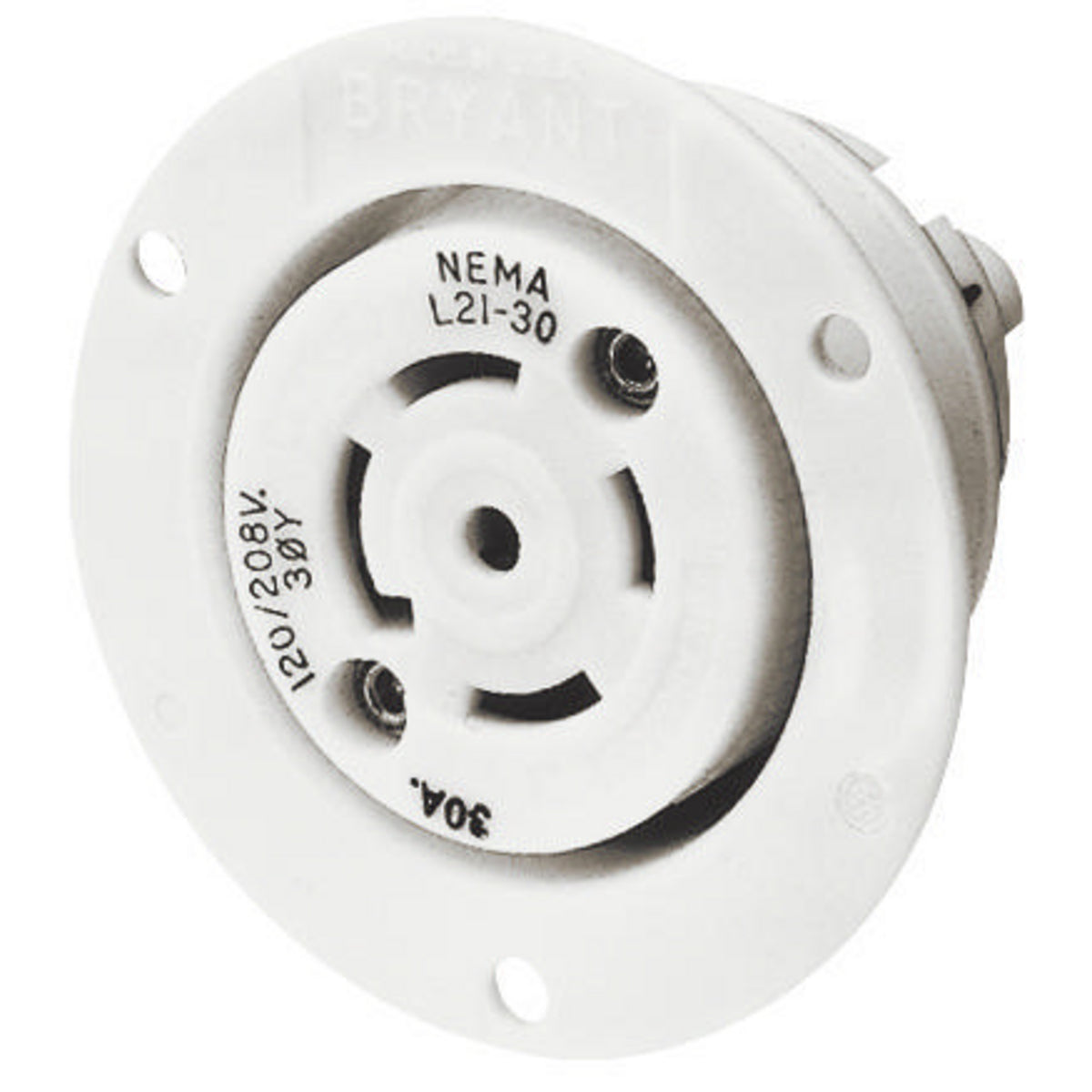

Bryant 72130ER Flanged Outlet L21-30R

Product Description

The Bryant 72130ER is a flanged outlet with NEMA rating of L21-30R. This industrial-grade flanged receptacle is designed for extra heavy-duty applications. It supports 30A, 3-Phase Wye 120/208V AC, and features a 4-pole, 5-wire grounding configuration with screw terminals.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

The 72130ER flanged receptacle is suitable for industrial environments, ensuring secure and reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72130ER

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 72130ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786701403
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L21-30R
• Manufacturer Part Number: 72130ER
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Flanged Receptacle, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal, White
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Mounting Style: Flange
• Brand: Bryant
• Model: 72130ER
• MPN: 72130ER
• Part #: 72130ER
• Category: Plug/Receptacle
• Description - Long: Locking Devices, Industrial, Flanged Receptacle, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal, White.
• Description - Short: Locking Devices, Industrial, Flanged Receptacle, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal, White
• Mounting: Screw Mount
• Special Features: Standard Product
