Product Description

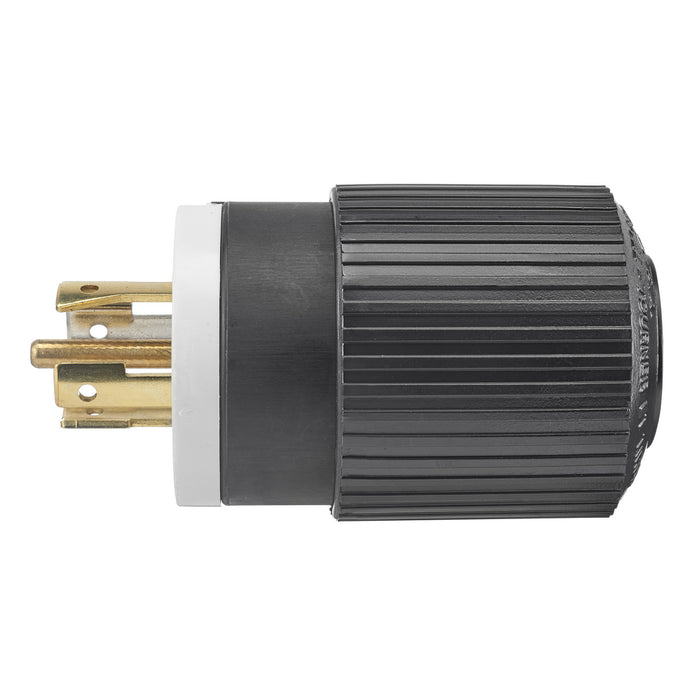

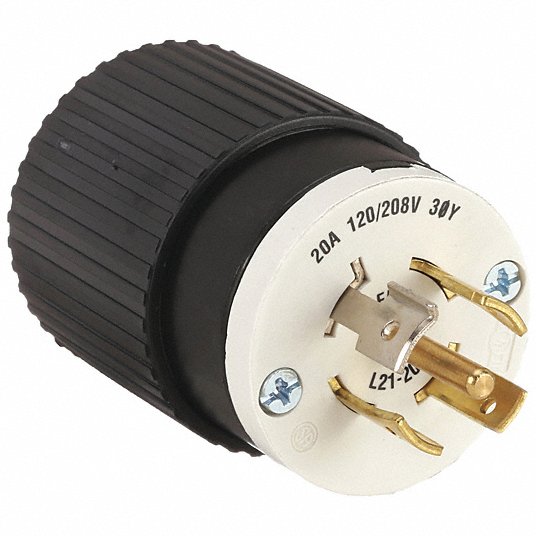

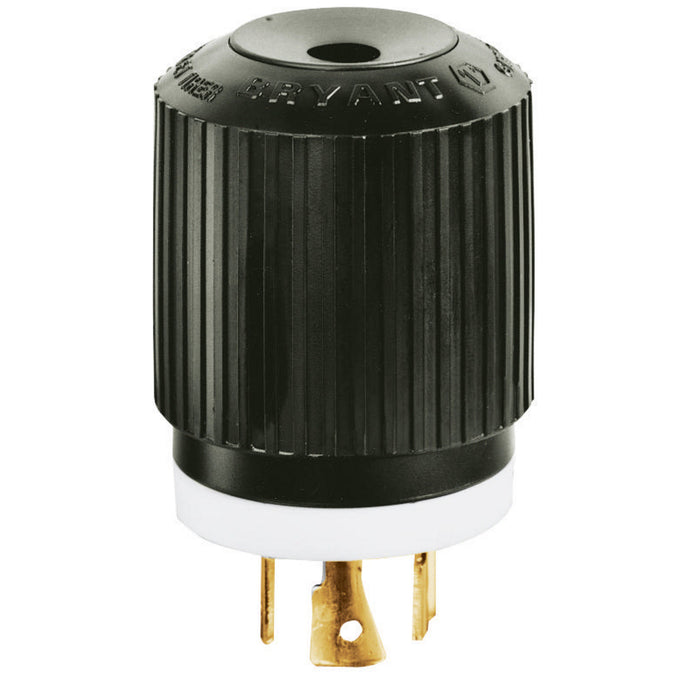

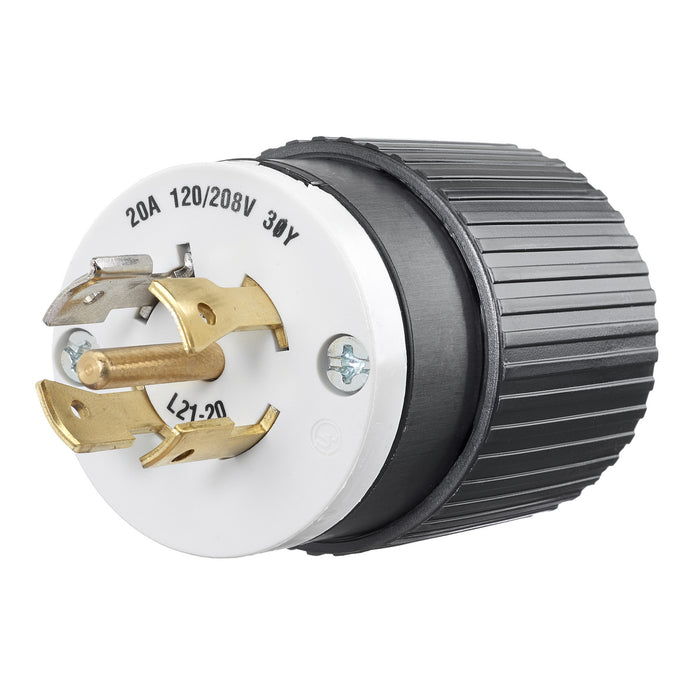

The BRYANT 72120NP is an industrial male nylon plug designed for secure cable-to-plug connections in industrial and commercial power applications. It is rated for 20A, 3-Phase Wye 120/208V AC, and features a 4-Pole 5-Wire grounding configuration. Ideal for environments where vibration or movement could disrupt connections.
- Hand grip features wide-rib, non-slip design

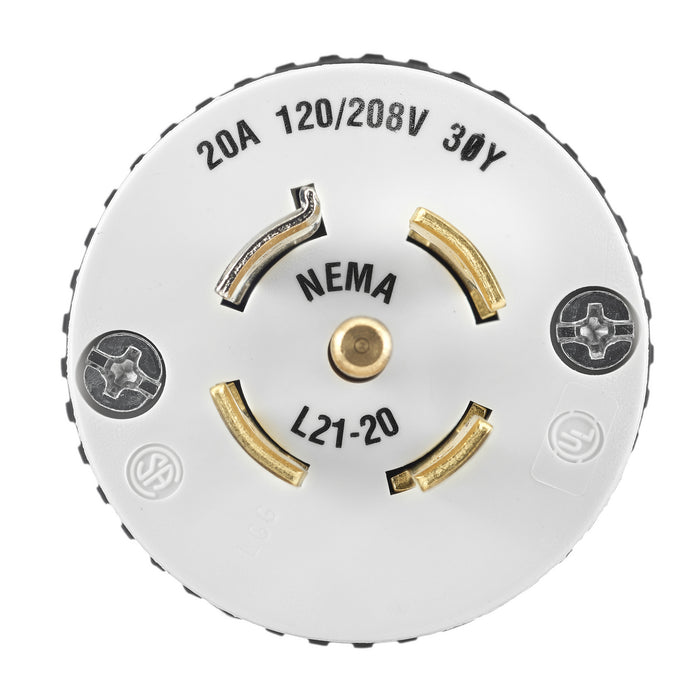

- Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
- Captive, combination Slot/Phillips assembly screws
Product Highlights
This Bryant locking plug ensures reliable power connections in demanding industrial settings. Its robust construction and secure grip make it suitable for plant floors and manufacturing facilities.
Product Information
Standard Information
-
Brand: BRYANT
-
Manufacturer Part Number: 72120NP
-
Country of Origin: USA
Technical Specifications
-
Catalog Number: 72120NP
-
Application: Extra Heavy Duty Industrial
-
Material: Composite
-
Material - Mounting Hardware: Cord Mounted
-
OEM Brand Name: Hubbell Bryant
-
Style: Internal Cord Clamp
-
Type: Plugs
-
UPC: 781786701328
-
Amperage Rating: 20 A
-
Connectivity: Screw Terminals
-
Current Amperage Description: 20 Amp
-
Current Rating: 20 A
-
Phase: Three Phase
-
Voltage Rating: 120/208V AC
-
Voltage Rating Description: 3 Phase Y 120/208 VAC
-
Number Of Poles: 4-Pole
-
Number Of Wires: 5-Wire
-
Wire Size: #18 AWG to #8 AWG
-
Nema Rating: L21-20P
-
Cord Type: All Listed Portables
-
Body Length: 2.13 in
-
Compatible Series: Twist Lock
-
Connection Orientation: Straight
-
For Environment: Dry
-
For Maximum Cable Diameter: 1.15 in
-
For Minimum Cable Diameter: 0.465 in
-
Grounding: Grounded
-
Horsepower Rating: 2 hp
-
Housing Material: Nylon
-
IP Rating: IP20
-
Maximum Wire Size: 8 AWG
-
Minimum Wire Size: 18 AWG
-
NEMA Configuration: L21-20
-
NEMA Plug Configuration: L21-20P
-
Number of Blades: 5
-
Outside Diameter: 2.13 in
-
Resistance Properties: Chemical Resistant; Impact Resistant
-
Shrouded: No
-
Standards: NEMA WD-1; NEMA WD-5; UL 498
-
Wire Connection Type: Screw Terminals
-
Wiring Style: Standard
-
UNSPSC: 39121402
-
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
-
EU RoHS Indicator: Yes
-
Item Type: 20A Triple Gripper Nylon Plug
-
Brand: Bryant
