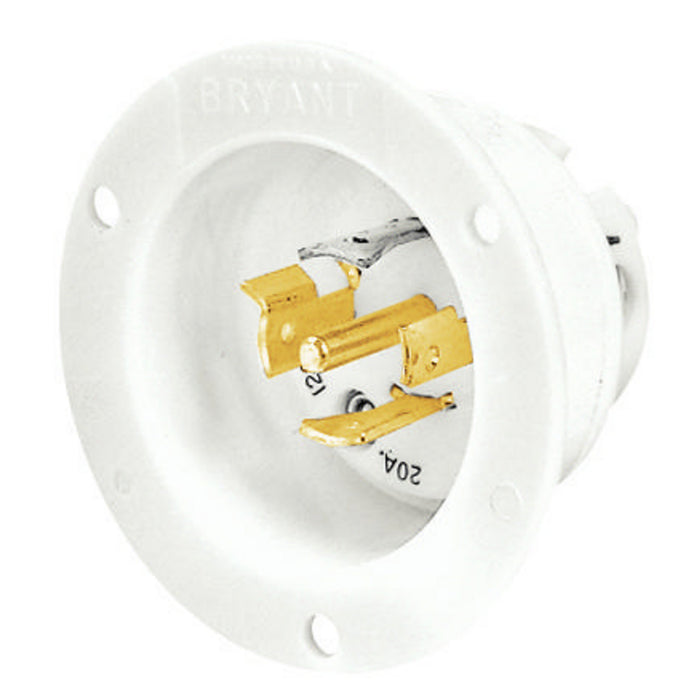

Bryant 72120MB Flanged Inlet 20A 3-Phase Wye 120/208V AC L21-20P

Product Description

The BRYANT 72120MB is an industrial flanged inlet designed for extra heavy-duty applications. This 20A, 4-pole, 5-wire grounding inlet supports a 3-Phase Wye 120/208V AC connection and features screw terminals for connectivity. Constructed from impact-resistant thermoplastic, it is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged inlet with robust construction and easy installation for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72120MB

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 72120MB
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• Type: Flanged Inlet
• UPC: 781786701267
• Dimensions: 3.06 in x 3.06 in x 2.03 in
• Height: 2.03 in
• Length: 3.06 in
• Width: 3.06 in
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Dielectric Strength: Withstands 3000V Minimum
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L21-20P
• Carton Quantity: 10
• Brand: Bryant
• SKU: 72120MB
• Mfr. Part Number: 72120MB
• Voltage: 120 or 208
• Housing Color: White
• UPC Code: #781786701267
• Weight: 0.1 lb
• Category: Plug/Receptacle
